746-046 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 46POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination	Card Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Gender	Read Out	Number of Positions	Number of Rows [custom]	Number of Positions/Bay/Row	Mounting Type	Contact Finish	Termination Rows	Number of Rows
EDAC Inc. 746-046-525-606	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	Black	Female	Dual	46	2	23	Through Hole	Gold

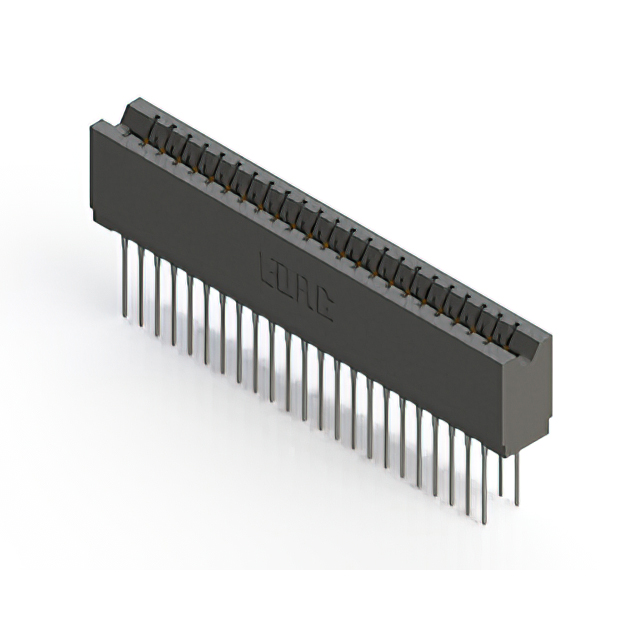

EDAC Inc. 746-046-545-606	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	Black	Female	Dual	46	2	23	Through Hole	Gold
EDAC Inc. 746-046-525-201	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	Black	Female	Dual	46	2	23	Through Hole	Gold
EDAC Inc. 746-046-527-201	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	Black	Female	Dual	46	2	23	Through Hole	Gold
EDAC Inc. 746-046-527-206	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	Black	Female	Dual	46	2	23	Through Hole	Gold
EDAC Inc. 746-046-540-101		Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Non Specified - Single Edge	Cantilever	-40 C	105 ░C	Black	Female	Single	46		46	Through Hole	Gold	1	1

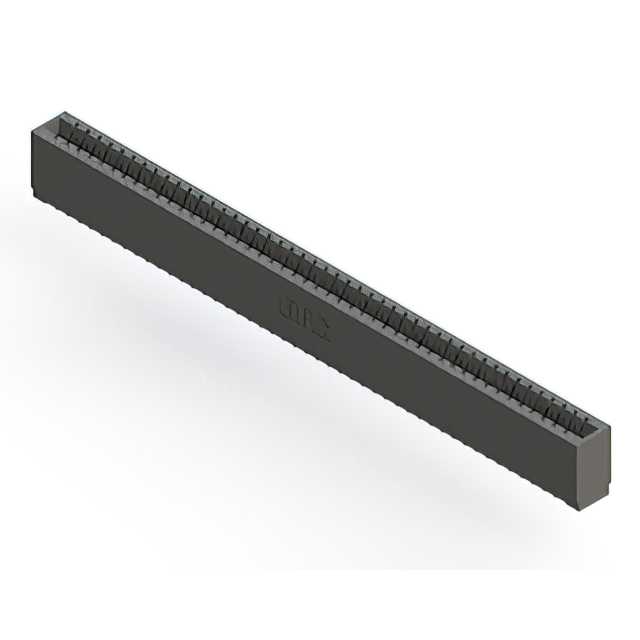

EDAC Inc. 746-046-520-101		Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit	Non Specified - Single Edge	Cantilever	-40 C	105 ░C	Black	Female	Single	46		46	Through Hole	Gold	1	1
EDAC Inc. 746-046-553-601	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	Black	Female	Dual	46	2	23	Through Hole	Gold

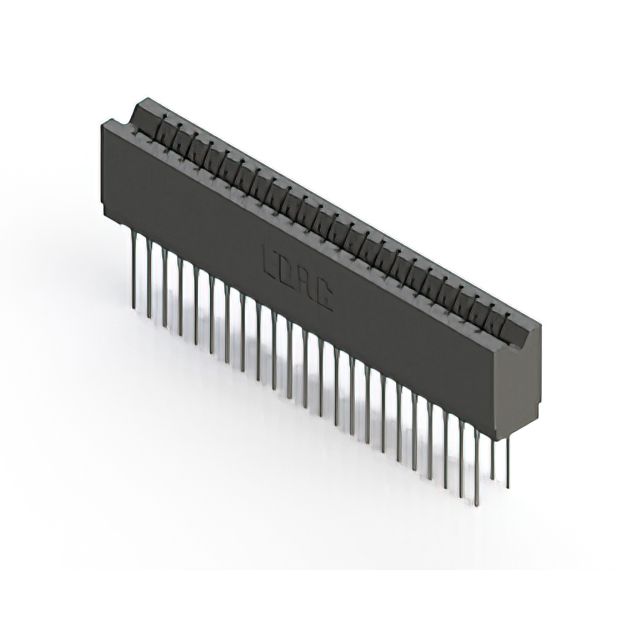

EDAC Inc. 746-046-553-606	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	Black	Female	Dual	46	2	23	Through Hole	Gold

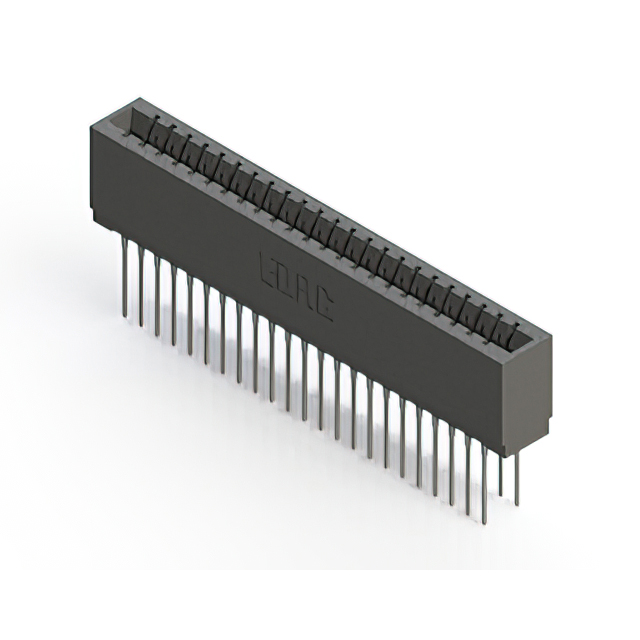

EDAC Inc. 746-046-540-601	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Non Specified - Dual Edge	Cantilever	-40 C	105 ░C	Black	Female	Dual	46	2	23	Through Hole	Gold
