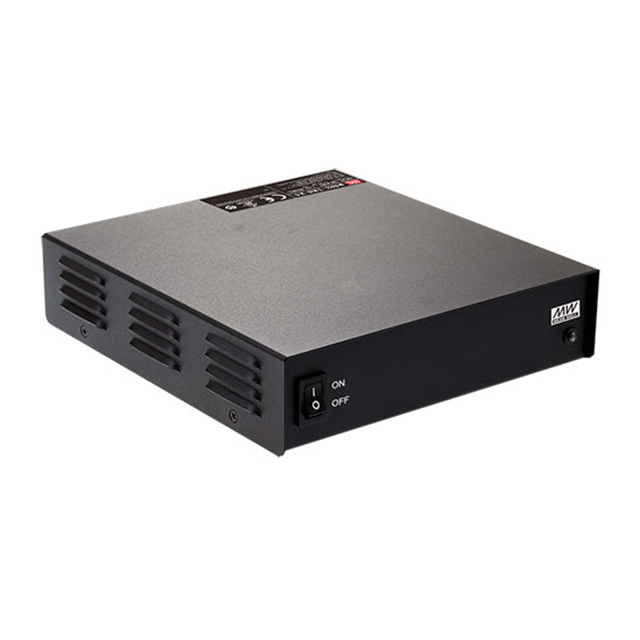

ENP-240 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 55.2V 243W
| Part | Minimum Load Required | Efficiency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Isolation | Voltage - Output 1 | Current - Output 1 | Mounting Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 94 % | 1.79 in | 7.56 in | 7.01 in | 192 mm | 178 mm | 45.5 mm | 3000 V | 55.2 V | 4.4 A | Benchtop | ITE (Commercial) | -30 °C | 70 °C | CB CE cULus | 243 W | 264 VAC 370 VDC | 90 VAC 127 VDC | 1 | Enclosed | Adjustable Output PFC Universal Input |
