DIN-048C Series

Catalog

CONN DIN PLUG 48POS PCB RA GOLD

Part	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Number of Rows [custom]	Mounting Type	Termination	Number of Positions Loaded	Number of Positions	Style	Style	Features
3M Electronic Specialty DIN-048CPC-SR1-TG30	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	UL94 V-0	3 A	0.1 "	2.54 mm	30 Áin	0.76 Ám	Gold	Plug Male Pins	3	Right Angle Through Hole	Solder	All	48	C/2	1/2 C
3M Electronic Specialty DIN-048CSC-PSL-HM	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	UL94 V-0	3 A	0.1 "	2.54 mm	3 µin	0.076 Ám	Gold	Receptacle Female Sockets	3	Through Hole	Press-Fit	All	48	C/2	1/2 C

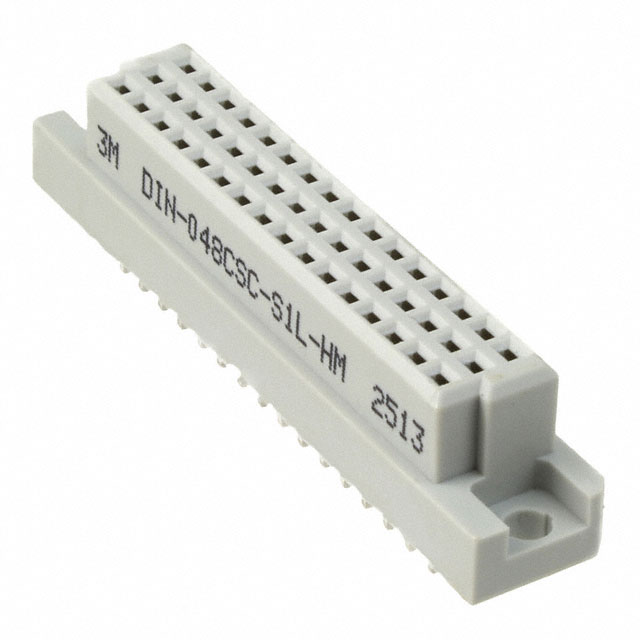

3M Electronic Specialty DIN-048CSC-S1L-HM	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	UL94 V-0	3 A	0.1 "	2.54 mm	3 µin	0.076 Ám	Gold	Receptacle Female Sockets	3	Through Hole	Solder	All	48	C/2	1/2 C
3M Electronic Specialty DIN-048CSC-S1L-TR	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	UL94 V-0	3 A	0.1 "	2.54 mm	3 µin	0.076 Ám	Gold	Receptacle Female Sockets	3	Through Hole	Solder	All	48	C/2	1/2 C
3M Electronic Specialty DIN-048CSC-PW1-KV	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	UL94 V-0	3 A	0.1 "	2.54 mm	30 Áin	0.76 Ám	Gold	Receptacle Female Sockets	3	Through Hole	Press-Fit	All	48	C/2	1/2 C
3M Electronic Specialty DIN-048CSC-S3L-TR	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	UL94 V-0	3 A	0.1 "	2.54 mm	3 µin	0.076 Ám	Gold	Receptacle Female Sockets	3	Through Hole	Solder	All	48	C/2	1/2 C
3M Electronic Specialty DIN-048CSC-R1L-HM	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	UL94 V-0	3 A	0.1 "	2.54 mm	3 µin	0.076 Ám	Gold	Receptacle Female Sockets	3	Through Hole	Solder	All	48	C/2	1/2 C	Board Lock
3M Electronic Specialty DIN-048CPC-SR1-HM	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	UL94 V-0	3 A	0.1 "	2.54 mm	3 µin	0.076 Ám	Gold	Plug Male Pins	3	Right Angle Through Hole	Solder	All	48	C/2	1/2 C
3M Electronic Specialty DIN-048CSC-S1-TG30	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	UL94 V-0	3 A	0.1 "	2.54 mm	30 Áin	0.76 Ám	Gold	Receptacle Female Sockets	3	Through Hole	Solder	All	48	C/2	1/2 C
3M Electronic Specialty DIN-048CSC-S1-TR	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	125 °C	UL94 V-0	3 A	0.1 "	2.54 mm	3 µin	0.076 Ám	Gold	Receptacle Female Sockets	3	Through Hole	Solder	All	48	C/2	1/2 C
