1577960 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

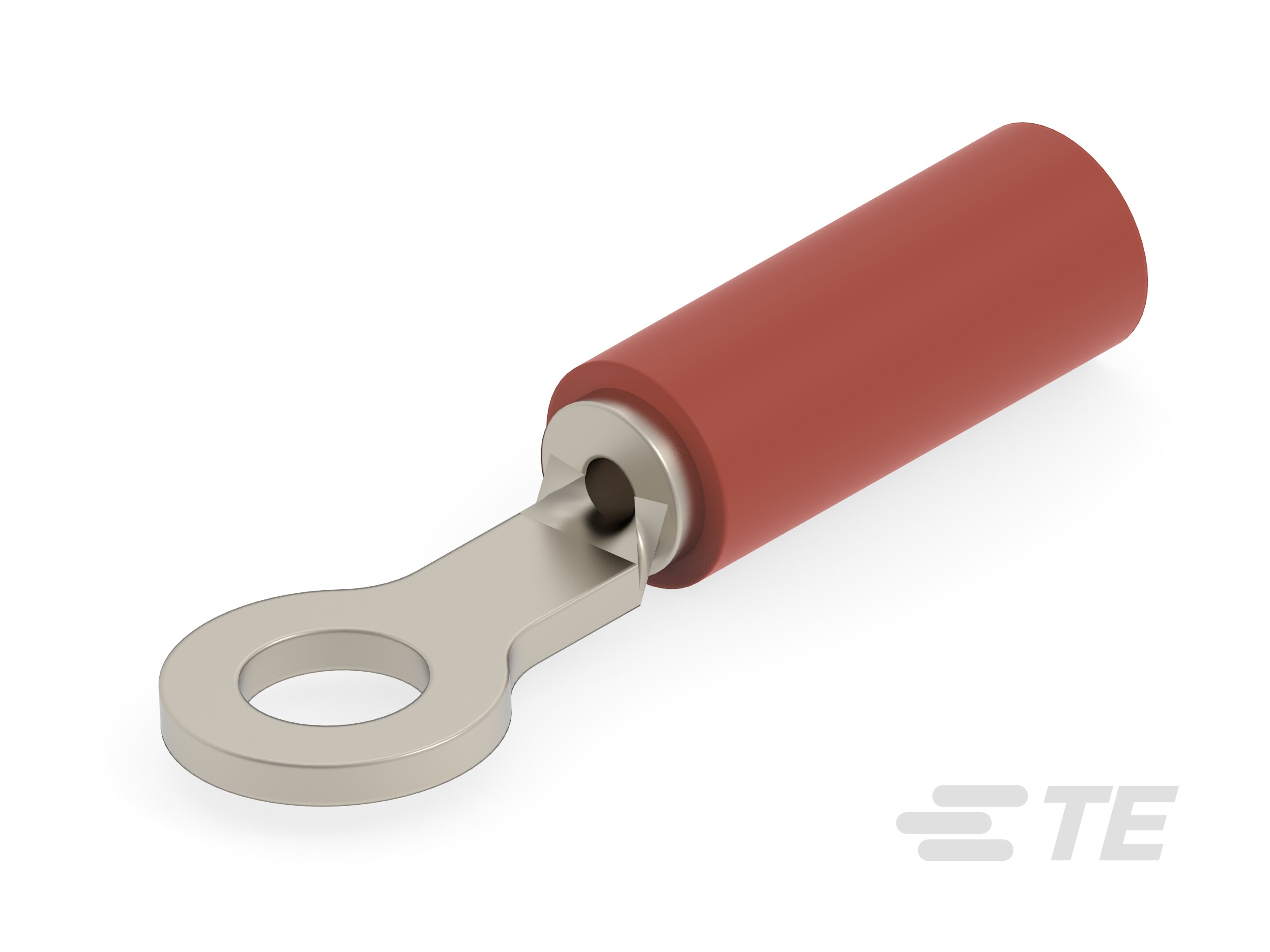

TERMINAL, PEEK PIDG STRATO, 24-22 AWG
| Part | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Material - Insulation | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Color | Termination | Features | Insulation | Contact Finish | Thickness | Thickness | Terminal Type | Contact Material | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Overall | Length - Overall | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.035 in | 1.91 mm | 0.89 mm | 0.075 in | Polyetheretherketone (PEEK) | Free Hanging (In-Line) | 24 AWG | 22 AWG | Brown | Crimp | Serrated Termination | Insulated | Nickel | 0.81 mm | 0.032 in | Circular | Copper | 0.218 in | 5.54 mm | 20.42 mm | 0.804 in | 4 Stud |
