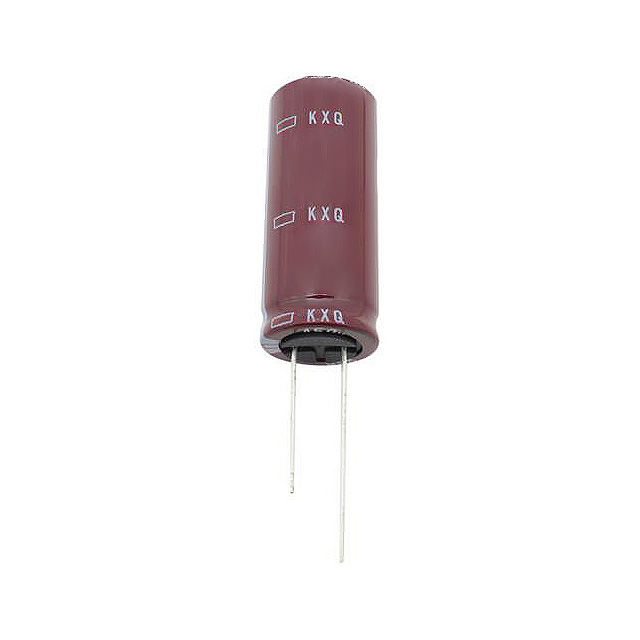

KXQ Series
Manufacturer: Chemi-Con
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 400VDC 56UF TOL 20% 16X20MM AEC-Q200
| Part | Height - Seated (Max) [Max] [custom] | Height - Seated (Max) [Max] [custom] | Voltage - Rated | Package / Case | Applications | Ratings | Ripple Current @ High Frequency | Lifetime @ Temp. | Polarization | Ripple Current @ Low Frequency | Capacitance | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Tolerance | Lead Spacing | Lead Spacing | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | 0.866 in | 22 mm | 400 V | Can Radial | Automotive | AEC-Q200 | 900 mA | 10000 Hrs | Polar | 450 mA | 56 µF | 0.63 in | 16 mm | -40 C | 105 ░C | Through Hole | 20 % | 0.295 in | 7.5 mm | ||
Chemi-Con | 450 V | Can Radial | Automotive | AEC-Q200 | 1.02 A | 12000 Hrs | Polar | 510 mA | 62 µF | 0.63 in | 16 mm | -40 C | 105 ░C | Through Hole | 20 % | 0.295 in | 7.5 mm | 1.063 in | 27 mm |
