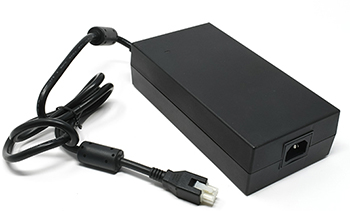

Medical Desktop Power Supply 48V 310 Watt
Medical Desktop Power Supply 48V 310 Watt
| Part | Form | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Standard Number | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Region Utilized | Input Connector | No Load Power Consumption | Approval Agency | Voltage - Output | Cord Length | Cord Length | Voltage - Input [Max] | Voltage - Input [Min] | Output Connector | Output Connector | Efficiency | Input Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | Desktop (Class I) | 16.66 A | 4 " | 2 in | 7.8 in 198.1 mm | 60601-1 | Medical | 0 °C | 60 °C | International | IEC 320-C14 | 500 mW | CB CE cURus FCC TUV | 15 V | 47 in | 1.2 m | 264 VAC | 90 VAC | Rectangular | 6 Position | Level VI | Cord (Sold Separately) | 250 W |
TT Electronics/BI | Desktop (Class I) | 12.5 A | 4 " | 2 in | 7.8 in 198.1 mm | 60601-1 | Medical | 0 °C | 60 °C | International | IEC 320-C14 | 500 mW | CB CE cURus FCC TUV | 24 V | 47 in | 1.2 m | 264 VAC | 90 VAC | Rectangular | 6 Position | Level VI | Cord (Sold Separately) | 300 W |
 TT Electronics/BI | Desktop (Class I) | 20.83 A | 4 " | 2 in | 7.8 in 198.1 mm | 60601-1 | Medical | 0 °C | 60 °C | International | IEC 320-C14 | 500 mW | CB CE cURus FCC TUV | 12 V | 47 in | 1.2 m | 264 VAC | 90 VAC | Rectangular | 6 Position | Level VI | Cord (Sold Separately) | 250 W |
TT Electronics/BI | Desktop (Class I) | 6.45 A | 4 " | 2 in | 7.8 in 198.1 mm | 60601-1 | Medical | 0 °C | 60 °C | International | IEC 320-C14 | 500 mW | CB CE cURus FCC TUV | 48 V | 47 in | 1.2 m | 264 VAC | 90 VAC | Rectangular | 6 Position | Level VI | Cord (Sold Separately) | 310 W |
