SMP-1A Series
Manufacturer: Standex-Meder Electronics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SSR - PHOTO MOSFET, 1 FORM A 400
| Part | Package / Case | Termination Style | Circuit | On-State Resistance (Max) | Voltage - Input | Voltage - Load (Max) | Voltage - Load (Min) | Load Current | Mounting Type | Approval Agency | Output Type | Package Name | Package Length | Package Width | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Input (DC) Maximum | Voltage - Input (DC) Minimum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

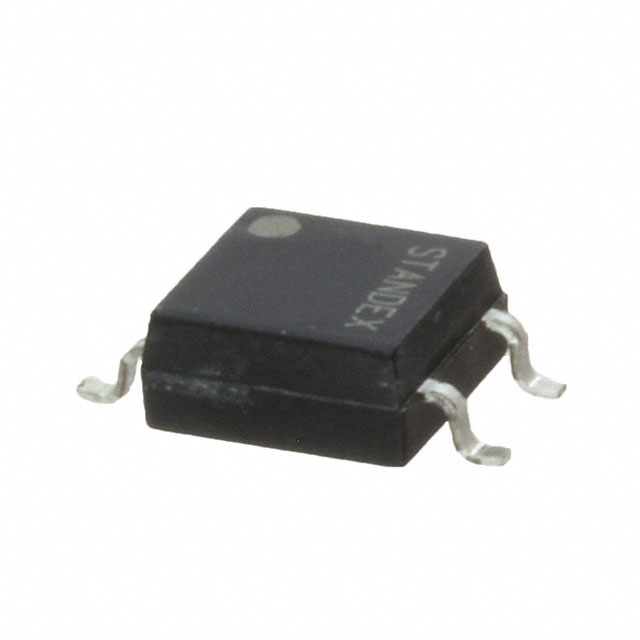

 Standex-Meder Electronics | 4-SMD Gull Wing | Gull Wing | SPST-NO (1 Form A) | 24 Ohms | 1.17 VDC | 400 V | 0 V | 120 mA | Surface Mount | cURus | AC DC | 4-SOP | ||||||
 Standex-Meder Electronics | PC Pin | SPST-NO (1 Form A) | 70 mOhm | 1.17 VDC | 60 V | 0 V | 2.5 A | Through Hole | cURus | AC DC | 6-DIP | 0.3 in | 7.62 mm | -40 °C | 85 °C | |||
Standex-Meder Electronics | PC Pin | SPST-NO (1 Form A) | 200 Ohm | 1.17 VDC | 1500 V | 0 V | 50 mA | Through Hole | cURus | AC DC | 6-DIP | 0.3 in | 7.62 mm | -40 °C | 85 °C | |||
 Standex-Meder Electronics | Gull Wing | SPST-NO (1 Form A) | 24 Ohms | 1.17 VDC | 400 V | 0 V | 0.1 A | Surface Mount | cURus | AC DC | 4-SOP | 0.173 in | 4.4 mm | |||||
Standex-Meder Electronics | Gull Wing | SPST-NO (1 Form A) | 60 Ohm | 1.17 VDC | 600 V | 0 V | 70 mA | Surface Mount | cURus | AC DC | 4-SOP | 0.173 in | 4.4 mm | -20 °C | 55 °C | |||
Standex-Meder Electronics | 4-SMD Gull Wing | Gull Wing | SPST-NO (1 Form A) | 24 Ohms | 1.17 VDC | 350 V | 0 V | 130 mA | Surface Mount | cURus | AC DC | 4-SOP | ||||||
Standex-Meder Electronics | Gull Wing | SPST-NO (1 Form A) | 60 Ohm | 600 V | 0 V | 70 mA | Surface Mount | cURus | AC DC | 4-SOP | 0.173 in | 4.4 mm | -20 °C | 55 °C | 1.5 VDC | 1 V | ||

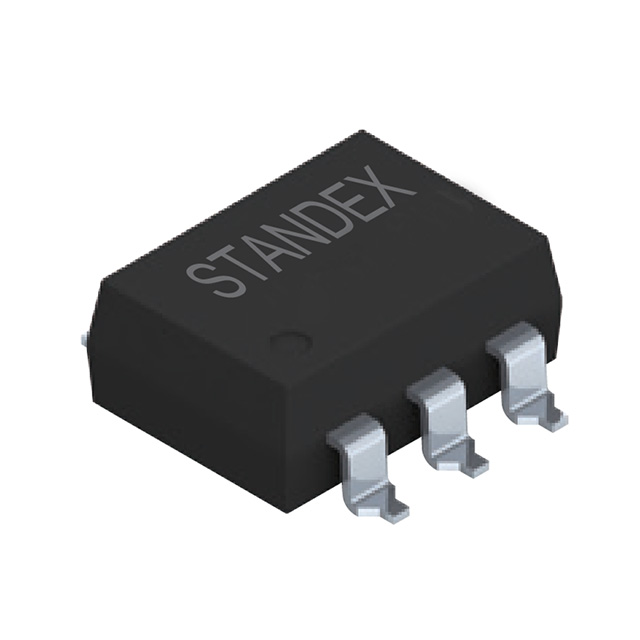

 Standex-Meder Electronics | Gull Wing | SPST-NO (1 Form A) | 200 Ohm | 1.17 VDC | 60 V | 0 V | 2.5 A | Surface Mount | cURus | AC DC | 6-SMD | 0.3 in | 7.62 mm | -40 °C | 85 °C | |||
Standex-Meder Electronics | Gull Wing | SPST-NO (1 Form A) | 160 mOhms | 1.37 VDC | 80 V | 0 V | 1.25 A | Surface Mount | AEC cURus | AC DC | 4-SOP | 0.173 in | 4.4 mm | -40 °C | 85 °C | |||
Standex-Meder Electronics | Gull Wing | SPST-NO (1 Form A) | 24 Ohms | 1.17 VDC | 350 V | 0 V | 120 mA | Surface Mount | cURus | AC DC | 4-SOP | 0.173 in | 4.4 mm |
