TE Series

Catalog

SPEAKERS & TRANSDUCERS ELECTRO-MECHANICAL TRANSDUCER

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Sound Pressure Level (SPL)	Mounting Type	Technology	Voltage - Rated	Termination	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Driver Circuitry	Port Location	Current - Supply	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Ratings	Height - Seated (Max) [Max]
DB Unlimited TE082305-1	4.5 mm	0.177 in	-30 ░C	70 °C	Zero-Peak Signal	87 dB	Surface Mount	Electromechanical	5 V	Solder Pads	8.5 mm	0.335 "	0.335 in	8.5 mm	Externally Driven Transducer	Side	90 mA	3 V	7 V

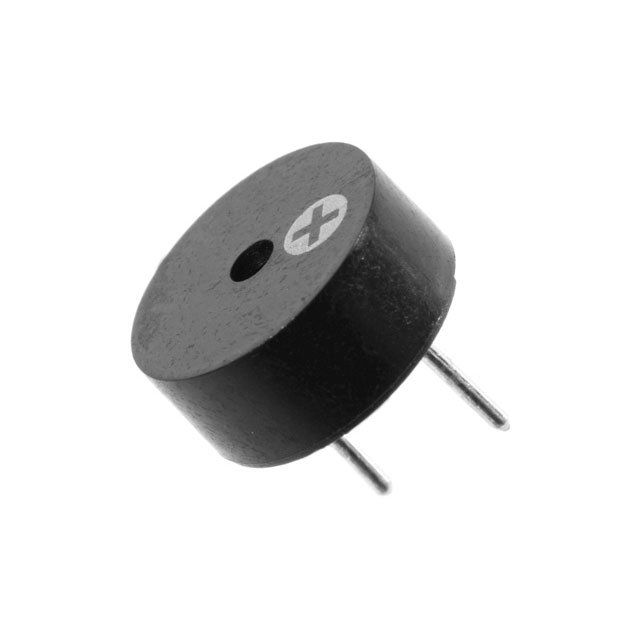

DB Unlimited TE092703-6			-30 ░C	70 °C	Zero-Peak Signal	85 dB	Through Hole	Electromechanical	3 VDC	PC Pins					Externally Driven Transducer	Top	60 mA	2 V	4 V	9 mm	0.354 in	5.7 mm	0.224 in	2.731 kHz

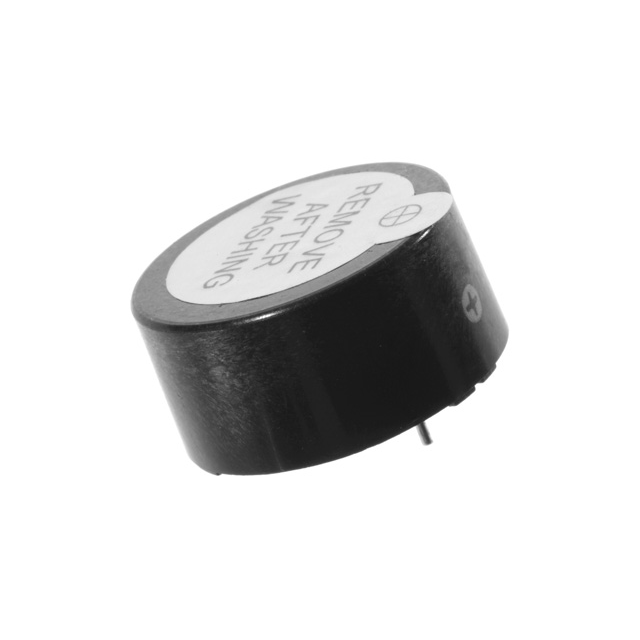

DB Unlimited TE250705-1			-40 C	85 °C	Zero-Peak Signal	85 dB	Through Hole	Electromechanical	5 V	PC Pins					Externally Driven Transducer	Top	80 mA	3 V	5 VDC	25 mm	0.984 "	0.492 in		730 Hz	Washable	12.5 mm

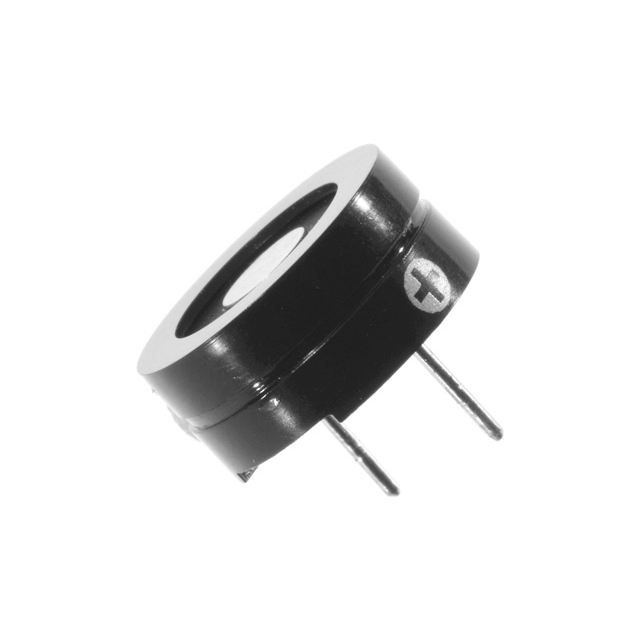

DB Unlimited TE122001-1			-20 ░C	60 °C	Zero-Peak Signal	70 dB	Through Hole	Electromechanical	1.5 VDC	PC Pins					Externally Driven Transducer	Top	10 mA	1 V	2 V	12 mm	0.472 "	5.4 mm	0.213 in	2.048 kHz

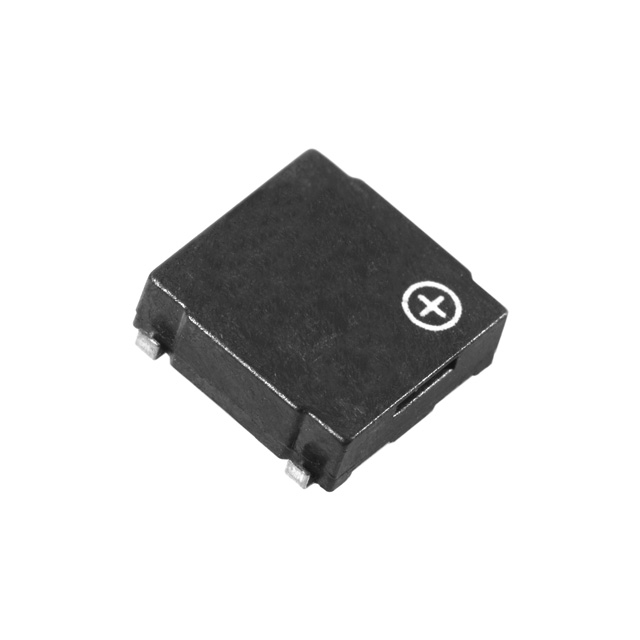

DB Unlimited TE082603-1			-20 ░C	70 °C	Zero-Peak Signal	88 dB	Surface Mount	Electromechanical	3.6 VDC	Solder Pads	8 mm	0.315 in	0.315 in	8 mm	Externally Driven Transducer	Side	90 mA	2 V	5 VDC			2.5 mm	0.098 in	2.67 kHz
