67 Series
Manufacturer: DB Unlimited
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

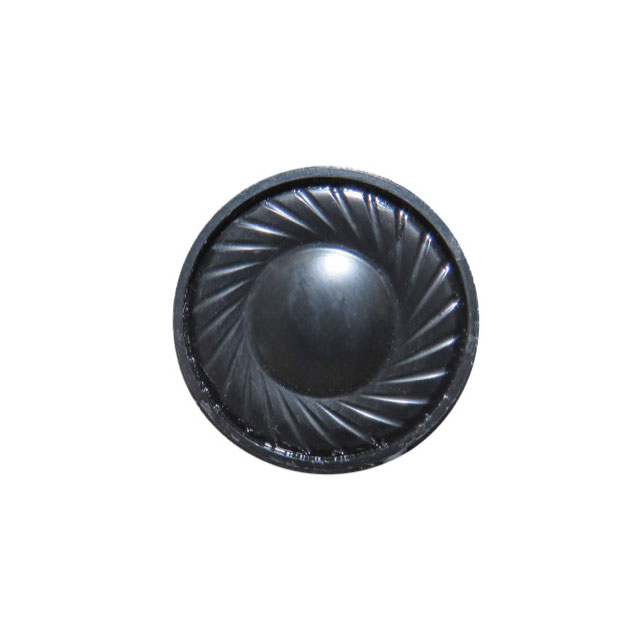

SPEAKERS & TRANSDUCERS WATERPROOF SPKR 8OHM ROUND, FLUSH, 1.5-2
| Part | Material - Cone | Frequency - Self Resonant | Efficiency - Testing (Length) | Impedance | Power - Rated | Size / Dimension Diameter | Height - Seated (Max) | Technology | Termination | Type | Ingress Protection Description | Ingress Protection IP Rating | Port Location | Shape | Frequency Range (Max) | Frequency Range (Min) | Power - Max | Efficiency - dBA | Efficiency - Type | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DB Unlimited | Polyester Polyethylene Terephthalate (PET) | 700 Hz | 100 mm | 8 Ohm | 1.5 W | 1.102 in | 0.217 in | Magnetic | Solder Pads | General Purpose | Dust Tight Waterproof | IP67 | Top | Round | 10 kHz | 700 Hz | 2 VA | 92 dBA | Sound Pressure Level (SPL) | -20 °C | 55 °C |
