SJD-35 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

CONN JACK DUAL STEREO 3.5MM R/A

Part	Actual Diameter [diameter]	Actual Diameter [diameter]	Termination	Shielding	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Mounting Type	Gender	Body Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Material	Voltage - Rated	Current Rating (Amps)	Contact Material - Plating	Features	Signal Lines	Number of Positions/Contacts	Number of Positions/Contacts	Internal Switch(s)	Body Material

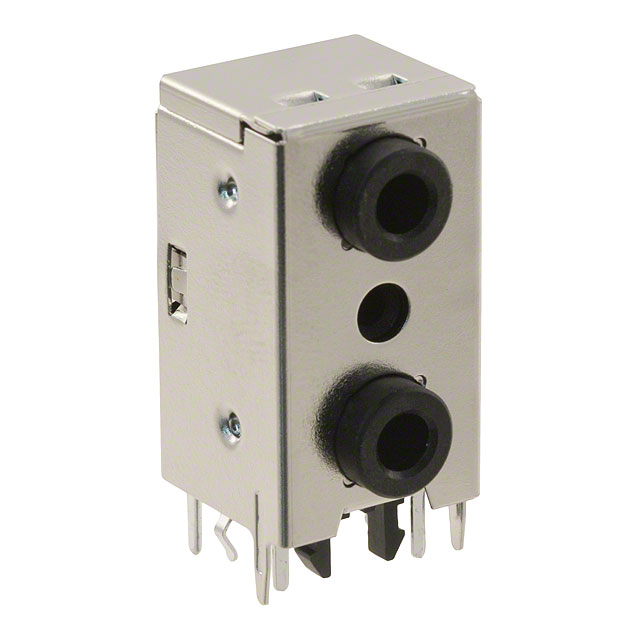

Same Sky (Formerly CUI Devices) SJD-3512-33	0.142 in	3.6 mm	Solder	Shielded	0.125 in	3.5 mm	0.141 in	Right Angle Through Hole	Female	Black	85 °C	-25 °C	Phone Jack Dual	Copper Alloy	16 V	0.3 A	Tin	Board Lock	Stereo (3 Conductor TRS)
Same Sky (Formerly CUI Devices) SJD-3510-45	0.142 in	3.6 mm	Solder	Unshielded	0.125 in	3.5 mm	0.141 in	Right Angle Through Hole	Female		85 °C	-25 °C	Phone Jack Dual					Board Lock	Stereo (3 Conductor TRS)	2 Sets of 3 Conductors	9 Contacts	Single Switch Two Switches

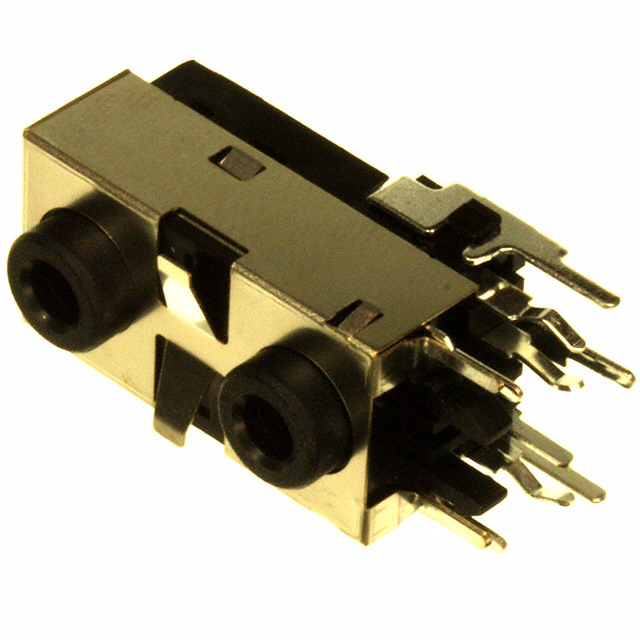

Same Sky (Formerly CUI Devices) SJD-3511-45	0.142 in	3.6 mm	Solder	Shielded	0.125 in	3.5 mm	0.141 in	Right Angle Through Hole	Female				Phone Jack Dual					Board Lock	Stereo (3 Conductor TRS)	2 Sets of 3 Conductors	9 Contacts	Single Switch Two Switches
Same Sky (Formerly CUI Devices) SJD-3510-45	0.142 in	3.6 mm	Solder	Unshielded	0.125 in	3.5 mm	0.141 in	Right Angle Through Hole	Female	Black	85 °C	-25 °C	Phone Jack Dual	Copper Alloy	16 V	0.3 A	Tin	Board Lock	Stereo (3 Conductor TRS)	2 Sets of 3 Conductors	9 Contacts	Single Switch Two Switches
Same Sky (Formerly CUI Devices) SJD-3511-45	0.142 in	3.6 mm	Solder	Shielded	0.125 in	3.5 mm	0.141 in	Right Angle Through Hole	Female	Black Gold			Phone Jack Dual	Brass	16 V	0.3 A	Tin	Board Lock	Stereo (3 Conductor TRS)	2 Sets of 3 Conductors	9 Contacts	Single Switch Two Switches	Brass
Same Sky (Formerly CUI Devices) SJD-3511-33	0.142 in	3.6 mm	Solder	Shielded	0.125 in	3.5 mm	0.141 in	Right Angle Through Hole	Female				Phone Jack Dual					Board Lock	Stereo (3 Conductor TRS)
Same Sky (Formerly CUI Devices) SJD-3512-33	0.142 in	3.6 mm	Solder	Shielded	0.125 in	3.5 mm	0.141 in	Right Angle Through Hole	Female		85 °C	-25 °C	Phone Jack Dual					Board Lock	Stereo (3 Conductor TRS)

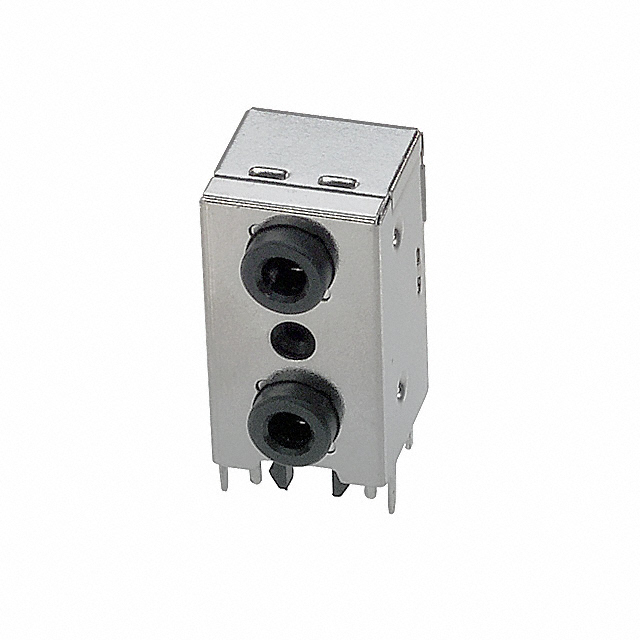

Same Sky (Formerly CUI Devices) SJD-3512-45	0.142 in	3.6 mm	Solder	Shielded	0.125 in	3.5 mm	0.141 in	Right Angle Through Hole	Female	Black	85 °C	-25 °C	Phone Jack Dual	Copper Alloy			Tin	Board Lock	Stereo (3 Conductor TRS)	2 Sets of 3 Conductors	9 Contacts	Single Switch Two Switches
Same Sky (Formerly CUI Devices) SJD-3511-33	0.142 in	3.6 mm	Solder	Shielded	0.125 in	3.5 mm	0.141 in	Right Angle Through Hole	Female	Black			Phone Jack Dual	Brass	16 V	0.3 A	Tin	Board Lock	Stereo (3 Conductor TRS)
Same Sky (Formerly CUI Devices) SJD-3512-45	0.142 in	3.6 mm	Solder	Shielded	0.125 in	3.5 mm	0.141 in	Right Angle Through Hole	Female		85 °C	-25 °C	Phone Jack Dual					Board Lock	Stereo (3 Conductor TRS)	2 Sets of 3 Conductors	9 Contacts	Single Switch Two Switches
