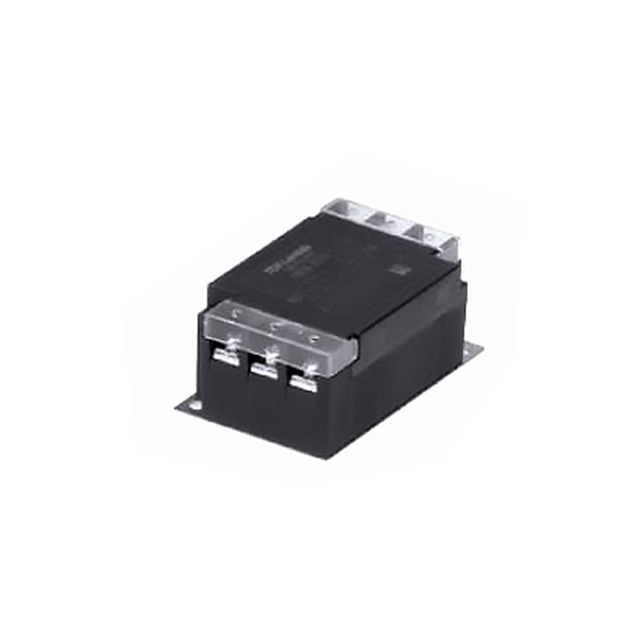

RSEN Series

Power Line Filters Filter 250VAC 30A

Manufacturer: TDK Corporation

Catalog

Power Line Filters Filter 250VAC 30A

Catalog

Power Line Filters Filter 250VAC 30A

Part	Filter Type	Applications	Current	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Rated AC	Voltage - Rated DC	Mounting Type	Configuration	Approval Agency
TDK Corporation RSEN-2150	Single Phase	General Purpose	150 A	85 °C	-25 °C	Terminal Block	250 V	250 V	Chassis Mount	Single Stage
TDK Corporation RSEN-2020	Single Phase	General Purpose	20 A	85 °C	-25 °C	Terminal Block	250 V	250 V	Chassis Mount	Single Stage	CSA EN UL
TDK Corporation RSEN-2300	Single Phase	General Purpose	300 A	85 °C	-25 °C	Terminal Block	250 V	250 V	Chassis Mount	Single Stage
TDK Corporation RSEN-2030	Single Phase	General Purpose	30 A	85 °C	-25 °C	Terminal Block	250 V	250 V	Chassis Mount	Single Stage	CSA EN UL
TDK Corporation RSEN-2016D	Single Phase	General Purpose	16 A	85 °C	-25 °C	Terminal Block	250 V	250 V	DIN Rail	Single Stage	CSA EN UL
TDK Corporation RSEN-2060	Single Phase	General Purpose	60 A	85 °C	-25 °C	Terminal Block	250 V	250 V	Chassis Mount	Single Stage	CSA EN UL
TDK Corporation RSEN-2003L	Single Phase	General Purpose	3 A	85 °C	-25 °C	Terminal Block	250 V	250 V	Chassis Mount	Single Stage	CSA EN UL
TDK Corporation RSEN-2010D	Single Phase	General Purpose	10 A	85 °C	-25 °C	Terminal Block	250 V	250 V	DIN Rail	Single Stage	CSA EN UL
TDK Corporation RSEN-2020L	Single Phase	General Purpose	20 A	85 °C	-25 °C	Terminal Block	250 V	250 V	Chassis Mount	Single Stage	CSA EN UL

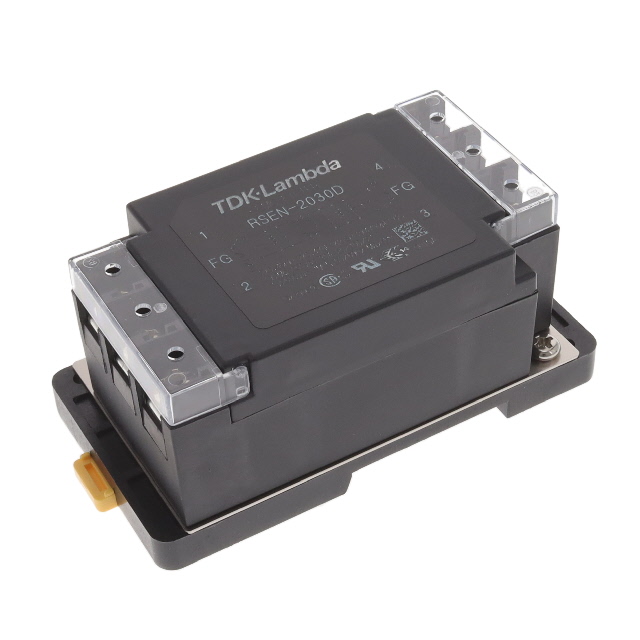

TDK Corporation RSEN-2030D	Single Phase	General Purpose	30 A	85 °C	-25 °C	Terminal Block	250 V	250 V	DIN Rail	Single Stage	CSA EN UL
