TL22SC Series
Manufacturer: NKK Switches
Beta
⌘K

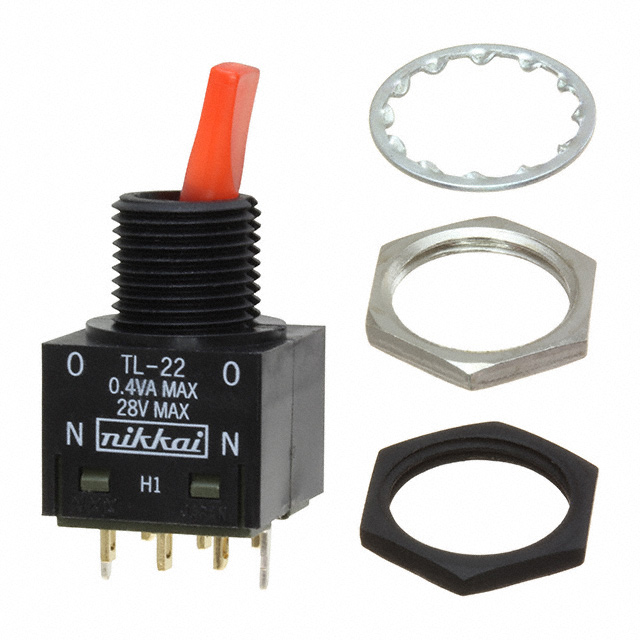

SWITCH TOGGLE DPDT 0.4VA 28V
| Part | Actuator Material | Electrical Life | Voltage Rating - AC | Mounting Type | Actuator Length [x] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Termination Style | Current Rating (Amps) | Bushing Thread | Illumination | Circuit | Actuator Type | Switch Function | Ingress Protection | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Polycarbonate (PC) | 50000 Cycles | 28 V | Panel Mount | 11 mm | Epoxy Sealed Terminals | 55 °C | -10 °C | 12.5 mm | 28 V | Solder Lug | 0.4 VA | M12 x 1 | Illuminated | DPDT | Flatted | On-On | IP65 - Dust Tight Water Resistant | LED Red | 2 VDC |
