165008 Series

Catalog

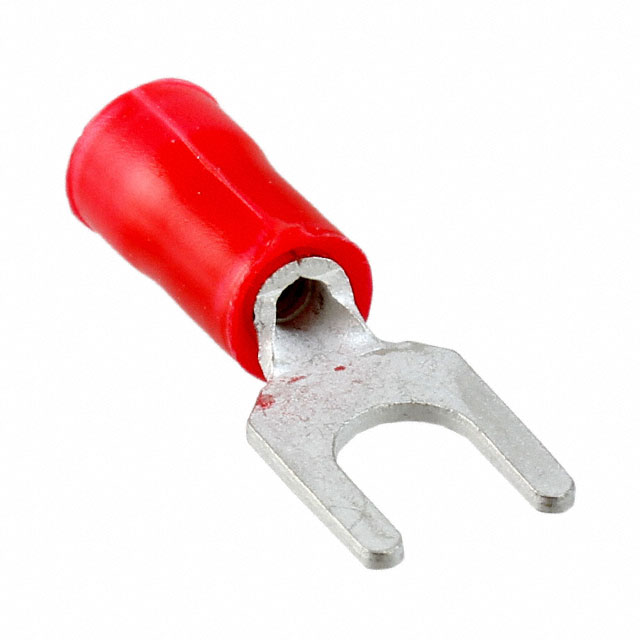

CONN SPADE TERM 16-22AWG M4 RED

Part	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Material - Insulation	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination	Contact Finish	Termination	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Color	Terminal Type	Insulation	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Material	Length - Overall [x]	Length - Overall [x]
TE Connectivity AMP Connectors 2-165008-1	4.29 mm	0.169 in	Poly-Vinyl Chloride (PVC)	2.69 mm	3.61 mm	0.106 "	0.142 in	0.248 in	6.3 mm	0.386 in	9.8 mm	Tin	Crimp	Free Hanging (In-Line)	16 AWG	22 AWG	Red	Standard	Insulated	M4 Stud	7.11 mm	0.28 in	Copper	0.831 in	21.1 mm
