HF01 Series

Catalog

IC REG CTRLR FLYBK PWM 8SOIC

Part	Fault Protection	Mounting Type	Supplier Device Package	Power (Watts)	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Topology	Package / Case	Package / Case	Output Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Start Up	Frequency - Switching [Max]	Voltage - Breakdown	Package / Case

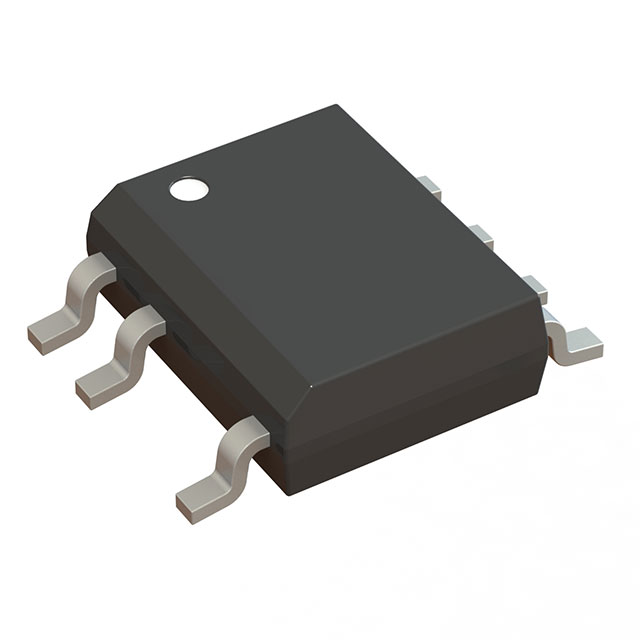

Monolithic Power Systems Inc. HF01B04DS-LF	Over Load Over Temperature Over Voltage	Surface Mount	8-SOIC-7B	23 Watts	20 V	8 V	Flyback	0.154 in 3.9 mm 7 Leads	8-SOIC	Isolated	85 C	-40 ¯C	11.8 V	150 kHz	700 V
Monolithic Power Systems Inc. HF01B04DP-LF	Over Load Over Temperature Over Voltage	Through Hole	8-PDIP-7B	23 Watts	20 V	8 V	Flyback	0.3 in	7 Leads 8-DIP	Isolated	85 C	-40 ¯C	11.8 V	150 kHz	700 V	7.62 mm
Monolithic Power Systems Inc. HF01B02DP-LF	Over Load Over Temperature Over Voltage	Through Hole	8-PDIP-7B	33 W	20 V	8 V	Flyback	0.3 in	7 Leads 8-DIP	Isolated	85 C	-40 ¯C	11.8 V	150 kHz	700 V	7.62 mm
Monolithic Power Systems Inc. HF01B04DS-LF-Z	Over Load Over Temperature Over Voltage	Surface Mount	8-SOIC-7B	23 Watts	20 V	8 V	Flyback	0.154 in 3.9 mm 7 Leads	8-SOIC	Isolated	85 C	-40 ¯C	11.8 V	150 kHz	700 V
Monolithic Power Systems Inc. HF01B01DP-LF	Over Load Over Temperature Over Voltage	Through Hole	8-PDIP-7B	45 W	20 V	8 V	Flyback	0.3 in	7 Leads 8-DIP	Isolated	85 C	-40 ¯C	11.8 V	150 kHz	700 V	7.62 mm
