RL-1256 Series
Manufacturer: Renco Electronics, Inc.
Beta
⌘K

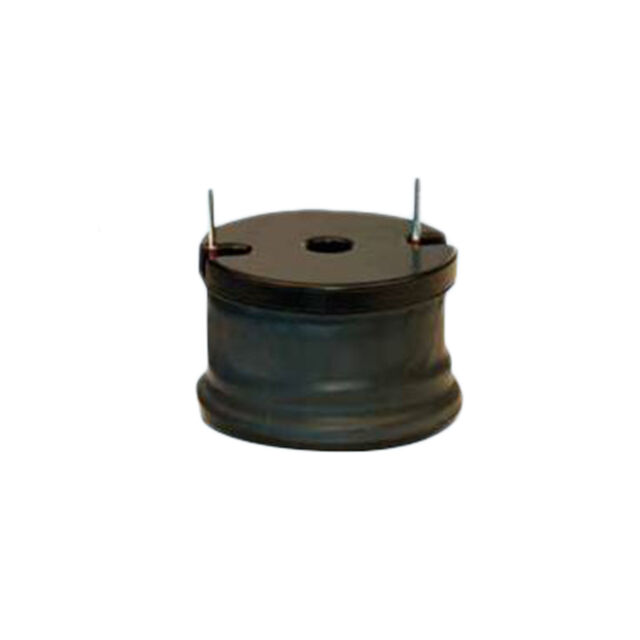

FIXED IND 220UH 5.5A 80MOHM TH
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Inductance Frequency - Test | Size / Dimension [diameter] | Size / Dimension [diameter] | Shielding | Current - Saturation (Isat) | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Package / Case | DC Resistance (DCR) [Max] | Tolerance | Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renco Electronics, Inc. | 130 °C | -40 C | 220 µH | 10 kHz | 1.1 " | 27.94 mm | Unshielded | 8.7 A | 5.5 Amps | 21.59 mm | 0.85 in | Through Hole | Radial Vertical Cylinder | 80 mOhm | 10 % | Wirewound | Radial |
