PXM7012 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
CIRCULAR CONNECTOR, BUCCANEER 7000 SERIES, PANEL MOUNT RECEPTACLE, 10 CONTACTS, ZINC ALLOY BODY
| Part | Contact Type | Ingress Protection | Number of Positions | Orientation | Type | Contact Shape | Housing Color | Primary Material | Shielding | Note | Shell Finish | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Mounting Feature | Fastening Type | Shell Material | Mounting Type | Voltage Rating | Contact Finish - Mating | Contact Material | Termination | Color | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

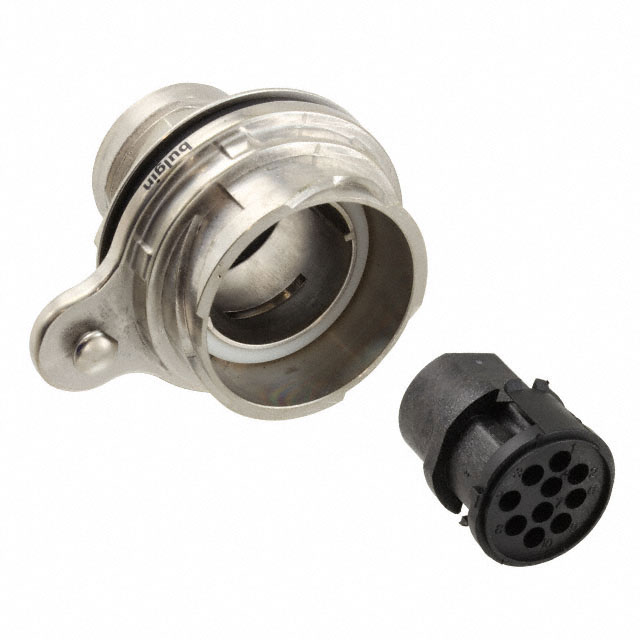

 BULGIN LIMITED | Crimp and Solder Cup | IP66 IP68 IP69K | 10 | Keyed | For Male Pins | Circular | Silver | Metal | Unshielded | Contacts Not Included | Nickel | 1 Nut 1 Washer 3 pcs - 1 Connector | 120 °C | -40 C | Receptacle Housing | Bulkhead - Rear Side Nut | Bayonet Lock | Zinc Alloy | Panel Mount | ||||||
 BULGIN LIMITED | Crimp and Solder Cup | IP66 IP68 IP69K | 10 | Keyed | For Female Sockets | Circular | Silver | Metal | Unshielded | Contacts Not Included | Nickel | 1 Nut 1 Washer 3 pcs - 1 Connector | 120 °C | -40 C | Receptacle Housing | Bulkhead - Rear Side Nut | Bayonet Lock | Zinc Alloy | Panel Mount | ||||||

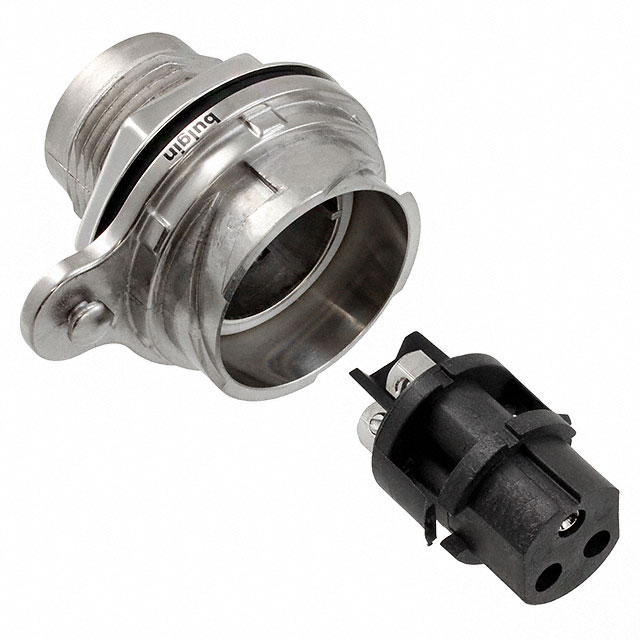

 BULGIN LIMITED | IP66 IP68 IP69K | 3 | Keyed | Metal | Unshielded | Nickel | 120 °C | -40 C | Receptacle Female Sockets | Bulkhead - Rear Side Nut | Bayonet Lock | Zinc Alloy | Panel Mount | 600 V | Nickel | Brass | Screw | Silver | 25 A | ||||||

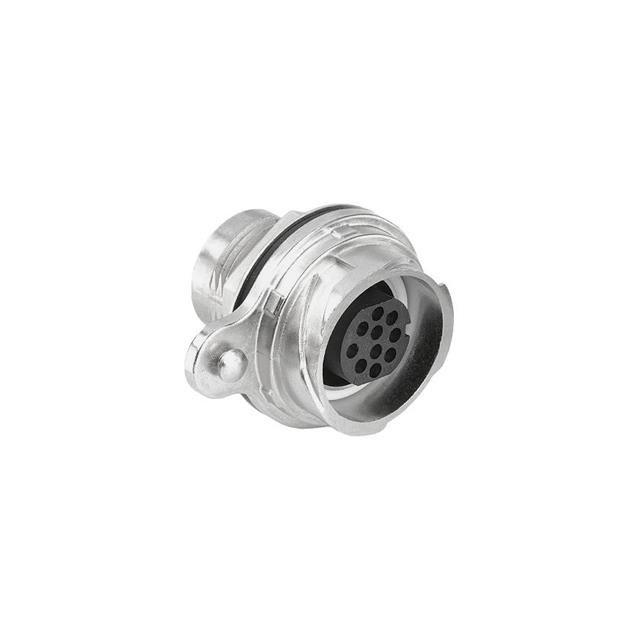

 BULGIN LIMITED | Crimp and Solder Cup | IP66 IP68 IP69K | 32 | Keyed | For Female Sockets | Circular | Silver | Metal | Unshielded | Contacts Not Included | Nickel | 1 Nut 1 Washer 3 pcs - 1 Connector | 120 °C | -40 C | Receptacle Housing | Bulkhead - Rear Side Nut | Bayonet Lock | Zinc Alloy | Panel Mount |
