C2824C Series

Manufacturer: KEMET

Catalog

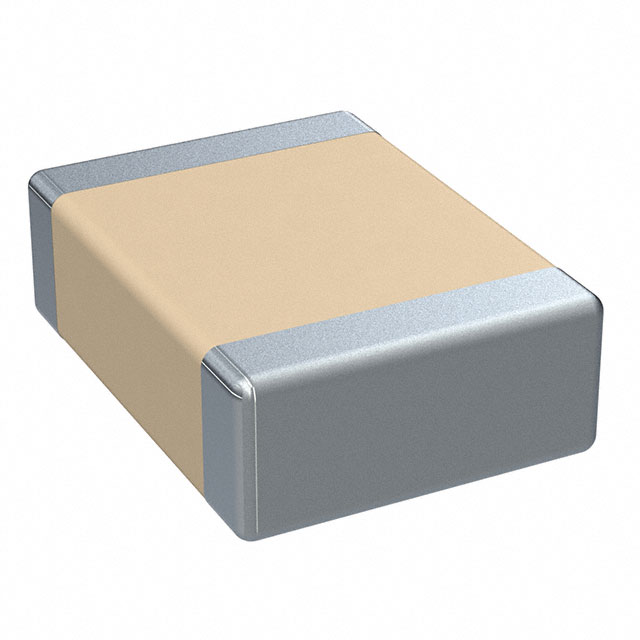

CAP CER 0.056UF 500V C0G 2824

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Mounting Type	Applications	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Temperature Coefficient	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Features	Voltage - Rated
KEMET C2824C563JCGACAUTO	0.106 in	2.7 mm	5 %	MLCC Surface Mount	Automotive	500 V	-55 C	125 °C	2824	7260 Metric	C0G NP0	AEC-Q200	7.1 mm	0.24 "	0.28 in	6.1 mm	56000 pF	High Voltage Low ESL
KEMET C2824C562JGGACAUTO	0.106 in	2.7 mm	5 %	MLCC Surface Mount	Automotive	2000 V	-55 C	125 °C	2824	7260 Metric	C0G NP0	AEC-Q200	7.1 mm	0.24 "	0.28 in	6.1 mm	0.0056 µF	High Voltage Low ESL	2 kV
KEMET C2824C393JBGACAUTO	0.106 in	2.7 mm	5 %	MLCC Surface Mount	Automotive	630 V	-55 C	125 °C	2824	7260 Metric	C0G NP0	AEC-Q200	7.1 mm	0.24 "	0.28 in	6.1 mm	0.039 µF	High Voltage Low ESL
KEMET C2824C223JDGACAUTO	0.106 in	2.7 mm	5 %	MLCC Surface Mount	Automotive	1000 V	-55 C	125 °C	2824	7260 Metric	C0G NP0	AEC-Q200	7.1 mm	0.24 "	0.28 in	6.1 mm	0.022 µF	High Voltage Low ESL	1 kV
