090816 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD 18POS 1.27MM

Part	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Fastening Type	Applications	Contact Finish - Mating	Insulation Material	Features	Termination	Material Flammability Rating	Connector Type	Insulation Height	Insulation Height	Number of Rows	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Current Rating (Amps)	Contact Shape	Style	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Material	Contact Type	Contact Finish Thickness - Mating	Number of Positions
Molex 0908163218	0.083 "	2.1 mm	18	Latch Lock	Automotive General Purpose Industrial Medical	Palladium-Nickel	Polyphthalamide (PPA) Glass Filled	Board Guide	Solder	UL94 HB	Header	0.333 in	8.45 mm	1	Tin	-40 °C	105 ░C	250 VDC	0.05 in	1.27 mm	Surface Mount	Black	1.2 A	Rectangular	Board to Cable/Wire	Shrouded - 2 Wall	24 µin	0.61 µm	3 µm	118.1 µin	All	Brass	Male Blade
Molex 0908160026	0.083 "	2.1 mm	26	Latch Lock	Automotive General Purpose Industrial Medical		Polyphthalamide (PPA) Glass Filled	Board Guide	Solder	UL94 HB	Header	0.333 in	8.45 mm	1	Tin	-40 °C	105 ░C	250 VDC	0.05 in	1.27 mm	Surface Mount	Black	1.2 A	Rectangular	Board to Cable/Wire	Shrouded - 2 Wall		118.1 µin			All	Brass	Male Blade	3 µm
Molex 0908163018	0.083 "	2.1 mm	18	Latch Lock	Automotive General Purpose Industrial Medical	Palladium-Nickel	Polyphthalamide (PPA) Glass Filled	Board Guide	Solder	UL94 HB	Header	0.333 in	8.45 mm	1	Tin	-40 °C	105 ░C	250 VDC	0.05 in	1.27 mm	Surface Mount	Black	1.2 A	Rectangular	Board to Cable/Wire	Shrouded - 2 Wall	24 µin	0.61 µm	3 µm	118.1 µin	All	Brass	Male Blade

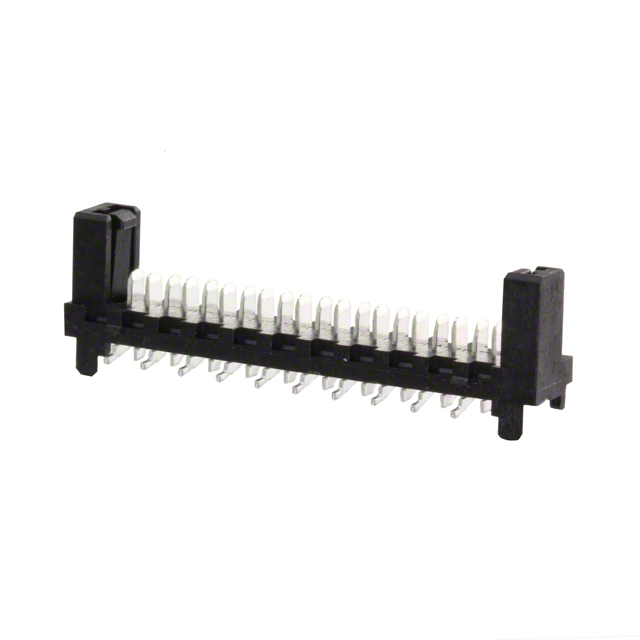

Molex 0908160020	0.083 "	2.1 mm	20	Latch Lock	Automotive General Purpose Industrial Medical		Polyphthalamide (PPA) Glass Filled	Board Guide	Solder	UL94 HB	Header	0.333 in	8.45 mm	1	Tin	-40 °C	105 ░C	250 VDC	0.05 in	1.27 mm	Surface Mount	Black	1.2 A	Rectangular	Board to Cable/Wire	Shrouded - 2 Wall		118.1 µin			All	Brass	Male Blade	3 µm
Molex 0908160022	0.083 "	2.1 mm	22 positions	Latch Lock	Automotive General Purpose Industrial Medical		Polyphthalamide (PPA) Glass Filled	Board Guide	Solder	UL94 HB	Header	0.333 in	8.45 mm	1	Tin	-40 °C	105 ░C	250 VDC	0.05 in	1.27 mm	Surface Mount	Black	1.2 A	Rectangular	Board to Cable/Wire	Shrouded - 2 Wall		118.1 µin			All	Brass	Male Blade	3 µm
Molex 0908165216
Molex 0908160014	0.083 "	2.1 mm	14	Latch Lock	Automotive General Purpose Industrial Medical		Polyphthalamide (PPA) Glass Filled	Board Guide	Solder	UL94 HB	Header	0.333 in	8.45 mm	1	Tin	-40 °C	105 ░C	250 VDC	0.05 in	1.27 mm	Surface Mount	Black	1.2 A	Rectangular	Board to Cable/Wire	Shrouded - 2 Wall		118.1 µin			All	Brass	Male Blade	3 µm
Molex 0908163016	0.083 "	2.1 mm		Latch Lock	Automotive General Purpose Industrial Medical	Palladium-Nickel	Polyphthalamide (PPA) Glass Filled	Board Guide	Solder	UL94 HB	Header	0.333 in	8.45 mm	1	Tin	-40 °C	105 ░C	250 VDC	0.05 in	1.27 mm	Surface Mount	Black	1.2 A	Rectangular	Board to Cable/Wire	Shrouded - 2 Wall	24 µin	0.61 µm	3 µm	118.1 µin	All	Brass	Male Blade		16

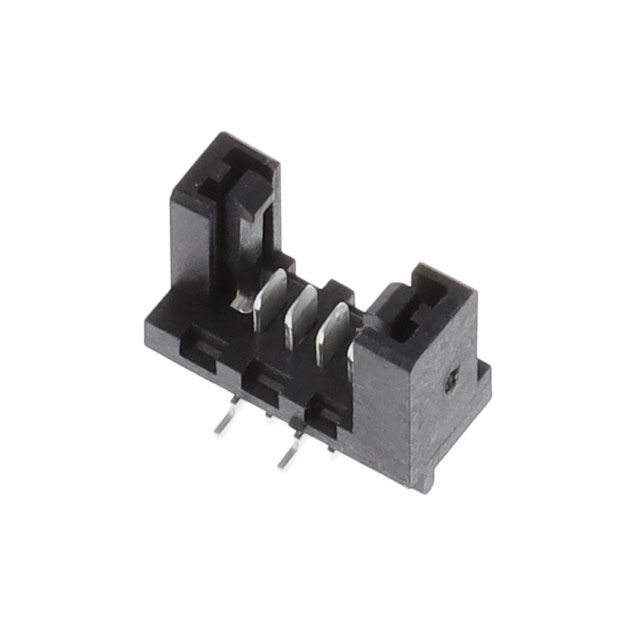

Molex 0908160004	0.083 "	2.1 mm	4	Latch Lock	Automotive General Purpose Industrial Medical		Polyphthalamide (PPA) Glass Filled	Board Guide	Solder	UL94 HB	Header	0.333 in	8.45 mm	1	Tin	-40 °C	105 ░C	250 VDC	0.05 in	1.27 mm	Surface Mount	Black	1.2 A	Rectangular	Board to Cable/Wire	Shrouded - 2 Wall		118.1 µin			All	Brass	Male Blade	3 µm

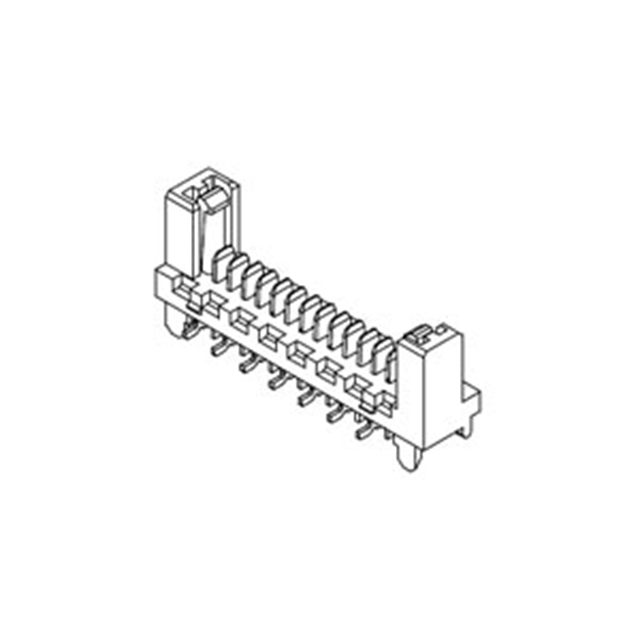

Molex 0908160212	0.083 "	2.1 mm	12	Latch Lock	Automotive General Purpose Industrial Medical		Polyphthalamide (PPA) Glass Filled	Board Guide	Solder	UL94 HB	Header	0.333 in	8.45 mm	1	Tin	-40 °C	105 ░C	250 VDC	0.05 in	1.27 mm	Surface Mount	Black	1.2 A	Rectangular	Board to Cable/Wire	Shrouded - 2 Wall		118.1 µin			All	Brass	Male Blade	3 µm
