NCP1399 Series

Current Mode Resonant Controller with Integrated High Voltage Drivers, High Performance

Catalog

Current Mode Resonant Controller with Integrated High Voltage Drivers, High Performance

Part	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching [Min]	Frequency - Switching [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Start Up	Supplier Device Package	Fault Protection	Package / Case [y]	Package / Case	Package / Case	Package / Case [x]	Topology	Output Isolation	Mounting Type	Duty Cycle	Voltage - Output	Utilized IC / Part	Supplied Contents	Regulator Topology	Current - Output	Power - Output	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Board Type	Frequency - Switching
ON Semiconductor NCP1399ANDR2G	-55 °C	150 °C	20 kHz	750 kHz	9.5 V	20 V	15.8 V	16-SOIC	Current Limiting Open Loop Over Load Over Temperature Over Voltage Short Circuit	3.9 mm	16-SOIC	14 Leads	0.154 in	Half-Bridge	Isolated	Surface Mount	50 %
ON Semiconductor NCP1399APDR2G	-55 °C	150 °C	20 kHz	750 kHz	9.5 V	20 V	15.8 V	16-SOIC	Current Limiting Open Loop Over Load Over Temperature Over Voltage Short Circuit	3.9 mm	16-SOIC	14 Leads	0.154 in	Half-Bridge	Isolated	Surface Mount	50 %

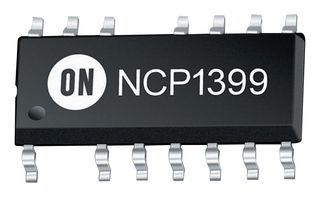

ON Semiconductor NCP1399AMDR2G	-40 °C	125 ¯C	20 kHz	750 kHz	9.5 V	20 V	12 V	16-SOIC	Current Limiting Open Loop Over Load Over Temperature Over Voltage Short Circuit	3.9 mm	16-SOIC	14 Leads	0.154 in	Half-Bridge	Isolated	Surface Mount	50 %
ON Semiconductor NCP1399ASDR2G	-55 °C	150 °C	20 kHz	750 kHz	9.5 V	20 V	12 V	16-SOIC	Current Limiting Open Loop Over Load Over Temperature Over Voltage Short Circuit	3.9 mm	16-SOIC	14 Leads	0.154 in	Half-Bridge	Isolated	Surface Mount	50 %
ON Semiconductor NCP1399AADR2G	-40 °C	125 ¯C	20 kHz	750 kHz	9.5 V	20 V	15.8 V	16-SOIC	Current Limiting Open Loop Over Load Over Temperature Over Voltage Short Circuit	3.9 mm	16-SOIC	14 Leads	0.154 in	Half-Bridge	Isolated	Surface Mount	50 %
ON Semiconductor NCP1399ADPGEVB																		19.5 V	NCP1399	Board(s)	Buck Flyback	7.7 A	150 W	AC/DC Primary and Secondary Side with PFC	85 VAC	260 VAC	Isolated	1	Fully Populated	750 kHz
ON Semiconductor NCP1399BADR2G	-40 °C	125 ¯C	20 kHz	750 kHz	9.5 V	20 V	15.8 V	16-SOIC	Current Limiting Open Loop Over Load Over Temperature Over Voltage Short Circuit	3.9 mm	16-SOIC	14 Leads	0.154 in	Half-Bridge	Isolated	Surface Mount	50 %
ON Semiconductor NCP1399AIDR2G	-40 °C	125 ¯C	20 kHz	750 kHz	9.5 V	20 V	15.8 V	16-SOIC	Current Limiting Open Loop Over Load Over Temperature Over Voltage Short Circuit	3.9 mm	16-SOIC	14 Leads	0.154 in	Half-Bridge	Isolated	Surface Mount	50 %

Catalog

Current Mode Resonant Controller with Integrated High Voltage Drivers, High Performance

Key Features

• High−Frequency Operation from 20 kHz up to 750 kHz

• Current Mode Control Scheme

• Automatic Dead−time with Maximum Dead−time Clamp

Description

The NCP1399 is a high performance current mode controller for half bridge resonant converters. This controller implements 600 V gate drivers, simplifying layout and reducing external component count. The built−in Brown−Out input function eases implementation of the controller in all applications. In applications where a PFC front stage is needed, the NCP1399 features a dedicated output to drive the PFC controller. This feature together with dedicated skip mode technique further improves light load efficiency of the whole application. The NCP1399 provides a suite of protection features allowing safe operation in any application. This includes: overload protection, over−current protection to prevent hard switching cycles, brown−out detection, open optocoupler detection, automatic dead−time adjust, overvoltage (OVP) and overtemperature (OTP) protections.
