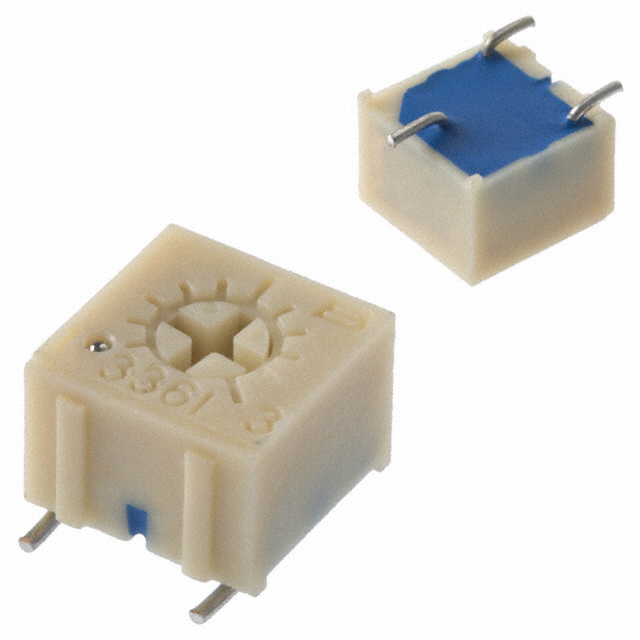

3361P Series

Catalog

TRIMMER 500K OHM 0.5W GW TOP ADJ

Part	Tolerance	Resistive Material	Temperature Coefficient	Termination Style	Adjustment Type	Number of Turns	Power (Watts)	Power (Watts)	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistance
Bourns Inc. 3361P-1-504GLF	10 %	Cermet	100 ppm/°C	Gull Wing	Top Adjustment	1	0.5 W	0.5 W	Surface Mount	6.7 mm	0.264 in	0.277 "	7.04 mm
Bourns Inc. 3361P-1-200GLF	10 %	Cermet	100 ppm/°C	Gull Wing	Top Adjustment	1	0.5 W	0.5 W	Surface Mount	6.7 mm	0.264 in	0.277 "	7.04 mm	20 Ohms
Bourns Inc. 3361P-1-203GLF	10 %	Cermet	100 ppm/°C	Gull Wing	Top Adjustment	1	0.5 W	0.5 W	Surface Mount	6.7 mm	0.264 in	0.277 "	7.04 mm	20 kOhms
Bourns Inc. 3361P-1-205G	10 %	Cermet	100 ppm/°C	Gull Wing	Top Adjustment	1	0.5 W	0.5 W	Surface Mount	6.7 mm	0.264 in	0.277 "	7.04 mm	2 MOhms
Bourns Inc. 3361P-1-103GLF	10 %	Cermet	100 ppm/°C	Gull Wing	Top Adjustment	1	0.5 W	0.5 W	Surface Mount	6.7 mm	0.264 in	0.277 "	7.04 mm	10000 Ohms
Bourns Inc. 3361P-1-500G	10 %	Cermet	100 ppm/°C	Gull Wing	Top Adjustment	1	0.5 W	0.5 W	Surface Mount	6.7 mm	0.264 in	0.277 "	7.04 mm	50 Ohms
Bourns Inc. 3361P-1-202GLF	10 %	Cermet	100 ppm/°C	Gull Wing	Top Adjustment	1	0.5 W	0.5 W	Surface Mount	6.7 mm	0.264 in	0.277 "	7.04 mm	2 kOhms
Bourns Inc. 3361P-1-203G	10 %	Cermet	100 ppm/°C	Gull Wing	Top Adjustment	1	0.5 W	0.5 W	Surface Mount	6.7 mm	0.264 in	0.277 "	7.04 mm	20 kOhms
Bourns Inc. 3361P-1-253GLF	10 %	Cermet	100 ppm/°C	Gull Wing	Top Adjustment	1	0.5 W	0.5 W	Surface Mount	6.7 mm	0.264 in	0.277 "	7.04 mm	25 kOhms
Bourns Inc. 3361P-1-202G	10 %	Cermet	100 ppm/°C	Gull Wing	Top Adjustment	1	0.5 W	0.5 W	Surface Mount	6.7 mm	0.264 in	0.277 "	7.04 mm	2 kOhms
