AOL17 Series

Catalog

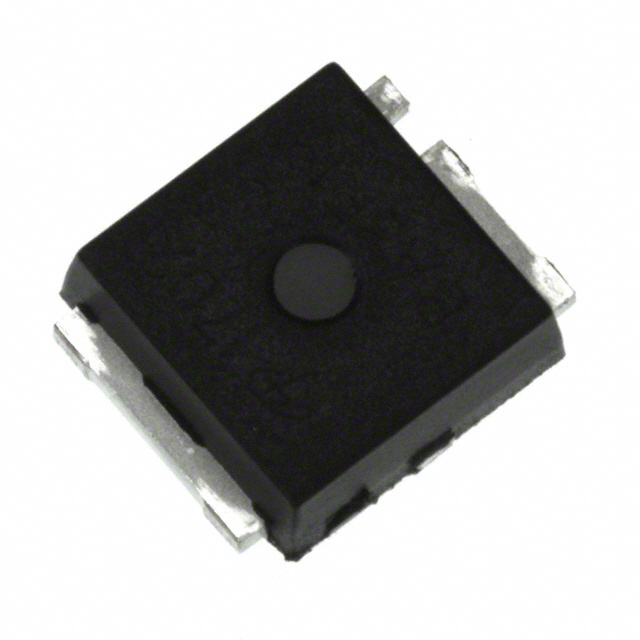

MOSFET N-CH 30V 17A/85A ULTRASO8

Part	Drain to Source Voltage (Vdss)	Power Dissipation (Max)	Technology	Vgs(th) (Max) @ Id	FET Feature	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	FET Type	Rds On (Max) @ Id, Vgs	Vgs (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Current - Continuous Drain (Id) @ 25°C
Alpha & Omega Semiconductor Inc. AOL1700	30 V	2.1 W 100 W	MOSFET (Metal Oxide)	2.2 V	Schottky Diode (Body)	4512 pF	74 nC	N-Channel	4.2 mOhm	20 V	175 °C	-55 °C	Surface Mount	UltraSO-8™	4.5 V 10 V	3-PowerSMD Flat Leads	17 A 85 A
