C44HLG Series
Manufacturer: KEMET
Beta
⌘K
CAP FILM 100UF 5% 700VDC RADIAL
| Part | Lead Spacing | Lead Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Voltage Rating - AC | Features | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Mounting Type | Tolerance | Voltage Rating - DC | Size / Dimension [diameter] | Size / Dimension [diameter] | Capacitance | Dielectric Material | Termination | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

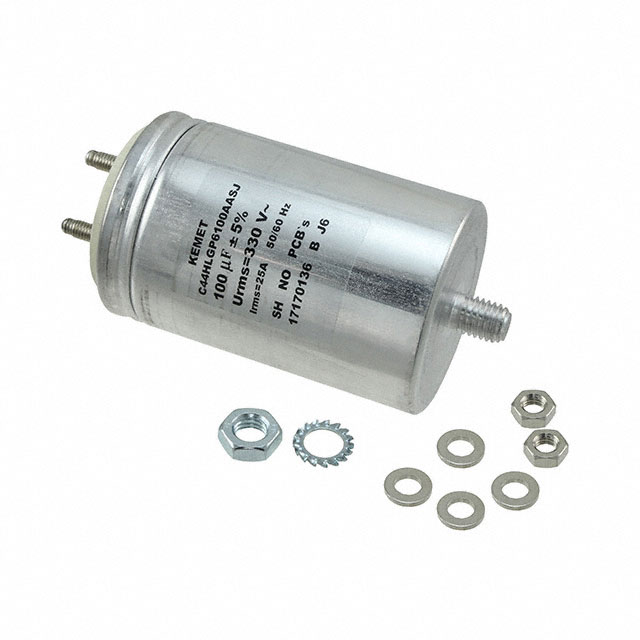

 KEMET | 0.886 in | 22.5 mm | -25 °C | 70 °C | Commutation Power Factor Correction (PFC) | 330 V | Long Life | 3.937 in | 100 mm | Can Radial | Chassis Stud Mount | 5 % | 700 VDC | 2.559 in | 65 mm | 100 µF | Polypropylene (PP) Metallized | Threaded Male | |
 KEMET | 1.378 " | 35 mm | -25 °C | 70 °C | Commutation Power Factor Correction (PFC) | 330 V | Long Life | 9.606 in | Can Radial | Chassis Stud Mount | 5 % | 700 VDC | 2.953 in | 75 mm | 400 µF | Polypropylene (PP) Metallized | Threaded Male | 244 mm |
