Barracuda Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ANTENNAS VEHICULAR MIMO FIN,6 PORTS,2X LTE, 2X WIFI,GNSS, UHF QMAM,BLK

Part	Antenna Type	Features	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [z]	Height (Max) [z]	Number of Bands	Gain	Power - Max [Max]	Mounting Type	Applications	VSWR	Frequency Group	Frequency (Center/Band)	Ingress Protection	Termination	RF Family/Standard	Height (Max) [z]

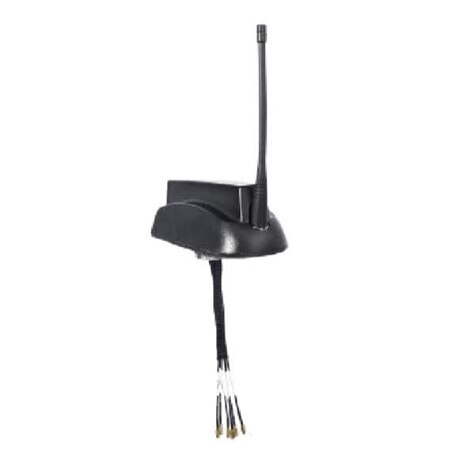

TE Connectivity AMP Connectors VFH69383B22JU-518M	Module	Cable - 304.8mm LNA	1.559 GHz 1.574 GHz 1.598 GHz 1.69 GHz 2.4 GHz 4.9 GHz 380 MHz 698 MHz 824 MHz 880 MHz	1.563 GHz 1.576 GHz 1.605 GHz 2.5 GHz 3.8 GHz 6 GHz 520 MHz 806 MHz 894 MHz 960 MHz	42.93 mm	1.69 in	10	1.3 dBi 2 dBi 2.1 dBi 2.8 dBi 3 dBi 3.9 dBi 7.6 dBi 7.7 dBi	60 W	Pole Mount	3G 4G BeiDou Bluetooth GLONASS GNSS GPS ISM LTE Wi-Fi	2 2.4 2.5	Wide Band	1.561 GHz 1.575 GHz 1.601 GHz 2.45 GHz 2.745 GHz 5.45 GHz 450 MHz 752 MHz 859 MHz 920 MHz	IP67	QMA Male SMA Male	Cellular Navigation WiFi

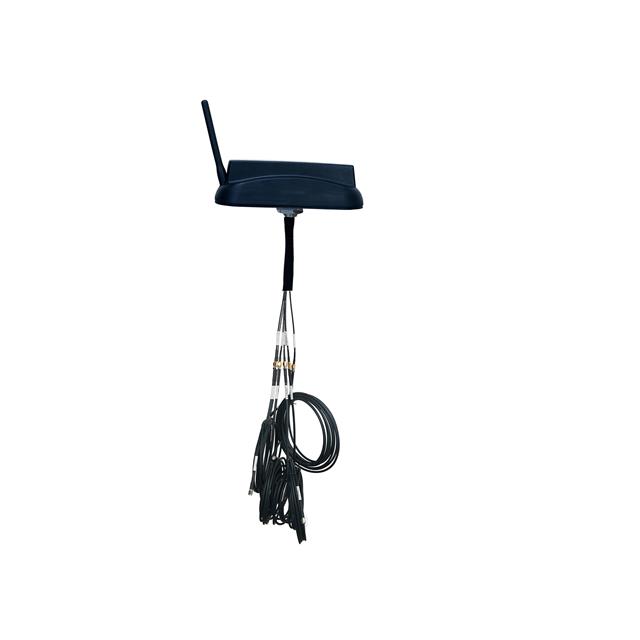

TE Connectivity AMP Connectors VFH69383B23JW-518J	Module	Cable - 5.18M LNA	1.559 GHz 1.574 GHz 1.598 GHz 1.69 GHz 2.4 GHz 4.9 GHz 698 MHz 824 MHz 880 MHz	1.563 GHz 1.576 GHz 1.605 GHz 2.5 GHz 3.8 GHz 6 GHz 806 MHz 894 MHz 960 MHz	1.89 in		9	-1 dBi 0.2 dBi 1 dBi 2 dBi 2.7 dBi 3.6 dBi 5.1 dBic	10 W	Panel Mount	BeiDou GLONASS GPS ISM LTE Wi-Fi	2	Wide Band	1.561 GHz 1.575 GHz 1.6015 GHz 2.45 GHz 2.745 GHz 5.45 GHz 752 MHz 859 MHz 920 MHz	IP67		Cellular General ISM Navigation WiFi	48 mm
TE Connectivity AMP Connectors VFH69383B23JW-518J	Module	Cable - 5.18M LNA	1.559 GHz 1.574 GHz 1.598 GHz 1.69 GHz 2.4 GHz 4.9 GHz 698 MHz 824 MHz 880 MHz	1.563 GHz 1.576 GHz 1.605 GHz 2.5 GHz 3.8 GHz 6 GHz 806 MHz 894 MHz 960 MHz	1.89 in		9	-1 dBi 0.2 dBi 1 dBi 2 dBi 2.7 dBi 3.6 dBi 5.1 dBic	10 W	Panel Mount	BeiDou GLONASS GPS ISM LTE Wi-Fi	2	Wide Band	1.561 GHz 1.575 GHz 1.6015 GHz 2.45 GHz 2.745 GHz 5.45 GHz 752 MHz 859 MHz 920 MHz	IP67		Cellular General ISM Navigation WiFi	48 mm
TE Connectivity AMP Connectors VFH69383B22JU-518M	Module	Cable - 304.8mm LNA	1.559 GHz 1.574 GHz 1.598 GHz 1.69 GHz 2.4 GHz 4.9 GHz 380 MHz 698 MHz 824 MHz 880 MHz	1.563 GHz 1.576 GHz 1.605 GHz 2.5 GHz 3.8 GHz 6 GHz 520 MHz 806 MHz 894 MHz 960 MHz	42.93 mm	1.69 in	10	1.3 dBi 2 dBi 2.1 dBi 2.8 dBi 3 dBi 3.9 dBi 7.6 dBi 7.7 dBi	60 W	Pole Mount	3G 4G BeiDou Bluetooth GLONASS GNSS GPS ISM LTE Wi-Fi	2 2.4 2.5	Wide Band	1.561 GHz 1.575 GHz 1.601 GHz 2.45 GHz 2.745 GHz 5.45 GHz 450 MHz 752 MHz 859 MHz 920 MHz	IP67	QMA Male SMA Male	Cellular Navigation WiFi
TE Connectivity AMP Connectors VFH69383B22JU-518J	Module	Cable - 4.9m LNA	1.559 GHz 1.574 GHz 1.598 GHz 1.69 GHz 2.4 GHz 4.9 GHz 380 MHz 698 MHz 824 MHz 880 MHz	1.563 GHz 1.576 GHz 1.605 GHz 2.5 GHz 3.8 GHz 6 GHz 520 MHz 806 MHz 894 MHz 960 MHz	42.93 mm	1.69 in	10	-4 dBi 0.1 dBi 1.2 dBi 2.4 dBi 3.1 dBi 3.7 dBi 3.8 dBi 5.2 dBi 5.9 dBi 6.5 dBi	60 W	Panel Mount	3G 4G 5G BeiDou GLONASS GPS ISM LTE Wi-Fi	2 2.1 2.4 2.5	Wide Band	1.561 GHz 1.575 GHz 1.601 GHz 2.45 GHz 2.745 GHz 5.45 GHz 450 MHz 752 MHz 859 MHz 920 MHz	IP67	SMA Male (4)	Cellular General ISM Navigation WiFi
TE Connectivity AMP Connectors VFH69383B22JU-518J	Module	Cable - 4.9m LNA	1.559 GHz 1.574 GHz 1.598 GHz 1.69 GHz 2.4 GHz 4.9 GHz 380 MHz 698 MHz 824 MHz 880 MHz	1.563 GHz 1.576 GHz 1.605 GHz 2.5 GHz 3.8 GHz 6 GHz 520 MHz 806 MHz 894 MHz 960 MHz	42.93 mm	1.69 in	10	-4 dBi 0.1 dBi 1.2 dBi 2.4 dBi 3.1 dBi 3.7 dBi 3.8 dBi 5.2 dBi 5.9 dBi 6.5 dBi	60 W	Panel Mount	3G 4G 5G BeiDou GLONASS GPS ISM LTE Wi-Fi	2 2.1 2.4 2.5	Wide Band	1.561 GHz 1.575 GHz 1.601 GHz 2.45 GHz 2.745 GHz 5.45 GHz 450 MHz 752 MHz 859 MHz 920 MHz	IP67	SMA Male (4)	Cellular General ISM Navigation WiFi
