Z8F0880 Series

Manufacturer: ZiLOG

Catalog

IC MCU 8BIT 8KB FLASH 28SOIC

Part	RAM Size	Mounting Type	Data Converters	Number of I/O	Core Size	Oscillator Type	Program Memory Type	Connectivity	Core Processor	Program Memory Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Peripherals	Speed	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [custom]	Package / Case	Package / Case [custom]	Supplier Device Package	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case
ZiLOG Z8F0880SJ020SG	2 K	Surface Mount	A/D 8x10b	23	8-Bit	Internal	FLASH	I2C IrDA LINbus SPI UART/USART	eZ8	8 KB	3.6 V	1.8 V	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	20 MHz	0 °C	70 °C	0.295 "	28-SOIC	7.5 mm
ZiLOG Z8F0880SJ020EG	2 K	Surface Mount	A/D 8x10b	23	8-Bit	Internal	FLASH	I2C IrDA LINbus SPI UART/USART	eZ8	8 KB	3.6 V	1.8 V	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	20 MHz	-40 °C	105 °C	0.295 "	28-SOIC	7.5 mm

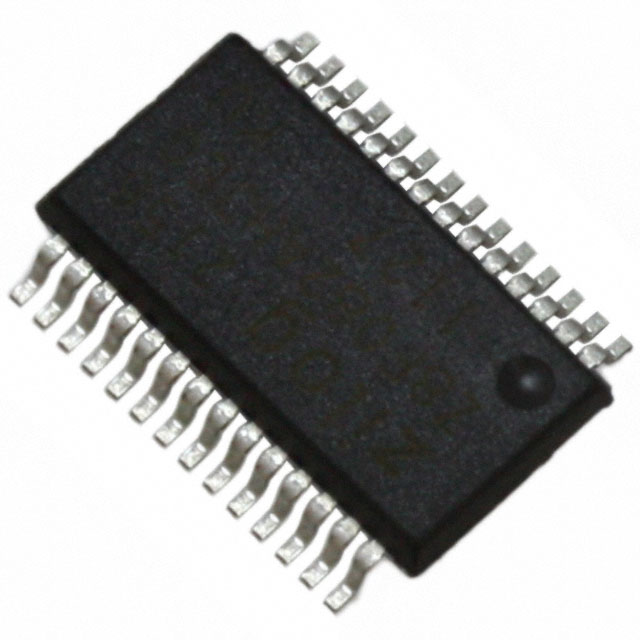

ZiLOG Z8F0880HJ020SG	2 K	Surface Mount	A/D 8x10b	23	8-Bit	Internal	FLASH	I2C IrDA LINbus SPI UART/USART	eZ8	8 KB	3.6 V	1.8 V	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	20 MHz	0 °C	70 °C		28-SSOP (0.209" 5.30mm Width)
ZiLOG Z8F0880PH020SG	2 K	Through Hole	A/D 7x10b	17	8-Bit	Internal	FLASH	I2C IrDA LINbus UART/USART	eZ8	8 KB	3.6 V	1.8 V	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	20 MHz	0 °C	70 °C		20-DIP (0.300" 7.62mm)
ZiLOG Z8F0880PH020EG	2 K	Through Hole	A/D 7x10b	17	8-Bit	Internal	FLASH	I2C IrDA LINbus UART/USART	eZ8	8 KB	3.6 V	1.8 V	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	20 MHz	-40 °C	105 °C		20-DIP (0.300" 7.62mm)
ZiLOG Z8F0880AN020EG	2 K	Surface Mount	A/D 8x10b	37	8-Bit	Internal	FLASH	I2C IrDA LINbus SPI UART/USART	eZ8	8 KB	3.6 V	1.8 V	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	20 MHz	-40 °C	105 °C		44-LQFP		44-LQFP (10x10)
ZiLOG Z8F0880HH020EG	2 K	Surface Mount	A/D 7x10b	17	8-Bit	Internal	FLASH	I2C IrDA LINbus UART/USART	eZ8	8 KB	3.6 V	1.8 V	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	20 MHz	-40 °C	105 °C		20-SSOP			5.3 mm	0.209 in
ZiLOG Z8F0880PJ020SG	2 K	Through Hole	A/D 8x10b	23	8-Bit	Internal	FLASH	I2C IrDA LINbus SPI UART/USART	eZ8	8 KB	3.6 V	1.8 V	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	20 MHz	0 °C	70 °C		28-DIP					15.24 mm	0.6 in
ZiLOG Z8F0880AN020SG	2 K	Surface Mount	A/D 8x10b	37	8-Bit	Internal	FLASH	I2C IrDA LINbus SPI UART/USART	eZ8	8 KB	3.6 V	1.8 V	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	20 MHz	0 °C	70 °C		44-LQFP		44-LQFP (10x10)
ZiLOG Z8F0880SH020EG	2 K	Surface Mount	A/D 7x10b	17	8-Bit	Internal	FLASH	I2C IrDA LINbus UART/USART	eZ8	8 KB	3.6 V	1.8 V	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	20 MHz	-40 °C	105 °C		20-SOIC (0.295" 7.50mm Width)
