055755 Series

Manufacturer: Molex

Catalog

CONN SHROUDED HEADER (4 SIDES) HDR 6 POS 2MM SOLDER ST THRU-HOLE MICROTPA TRAY

Part	Insulation Color	Termination	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Positions Loaded	Mounting Type	Features	Number of Positions	Contact Shape	Mated Stacking Heights	Connector Type	Contact Type	Contact Finish - Post	Number of Rows	Applications	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Overall Contact Length	Overall Contact Length	Shrouding	Insulation Height	Insulation Height	Style	Contact Length - Mating	Contact Length - Mating	Insulation Material	Material Flammability Rating

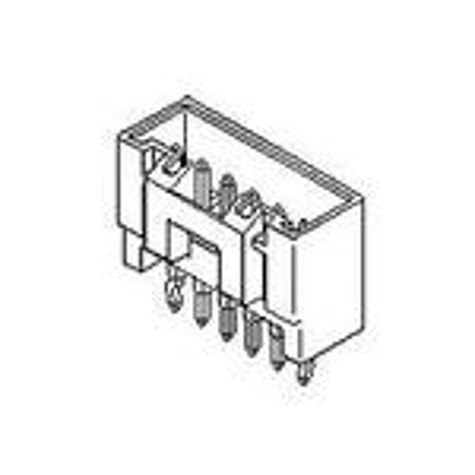

Molex 0557550619	Natural	Kinked Pin Solder	0.13 in	3.3 mm	Latch Lock	All	Through Hole	Board Guide	6	Square	13.45 mm	Header	Male Pin	Tin	1	Automotive General Purpose Industrial	Brass	0.079 in	2 mm	11.1 mm	0.437 in	Shrouded - 4 Wall	8.94 mm	0.352 in	Board to Cable/Wire	0.144 in	3.66 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0
Molex 0557551519	Natural	Kinked Pin Solder	0.13 in	3.3 mm	Latch Lock	All	Through Hole	Board Guide	15	Square	13.45 mm	Header	Male Pin	Tin	1	Automotive General Purpose Industrial	Brass	0.079 in	2 mm	11.1 mm	0.437 in	Shrouded - 4 Wall	8.94 mm	0.352 in	Board to Cable/Wire	0.144 in	3.66 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0
Molex 0557550519	Natural	Kinked Pin Solder	0.13 in	3.3 mm	Latch Lock	All	Through Hole	Board Guide		Square	13.45 mm	Header	Male Pin	Tin	1	Automotive General Purpose Industrial	Brass	0.079 in	2 mm	11.1 mm	0.437 in	Shrouded - 4 Wall	8.94 mm	0.352 in	Board to Cable/Wire	0.144 in	3.66 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0
Molex 0557550719	Natural	Kinked Pin Solder	0.13 in	3.3 mm	Latch Lock	All	Through Hole	Board Guide	7	Square	13.45 mm	Header	Male Pin	Tin	1	Automotive General Purpose Industrial	Brass	0.079 in	2 mm	11.1 mm	0.437 in	Shrouded - 4 Wall	8.94 mm	0.352 in	Board to Cable/Wire	0.144 in	3.66 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0
Molex 0557551319	Natural	Kinked Pin Solder	0.13 in	3.3 mm	Latch Lock	All	Through Hole	Board Guide	13	Square	13.45 mm	Header	Male Pin	Tin	1	Automotive General Purpose Industrial	Brass	0.079 in	2 mm	11.1 mm	0.437 in	Shrouded - 4 Wall	8.94 mm	0.352 in	Board to Cable/Wire	0.144 in	3.66 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0
Molex 0557551019	Natural	Kinked Pin Solder	0.13 in	3.3 mm	Latch Lock	All	Through Hole	Board Guide	10	Square	13.45 mm	Header	Male Pin	Tin	1	Automotive General Purpose Industrial	Brass	0.079 in	2 mm	11.1 mm	0.437 in	Shrouded - 4 Wall	8.94 mm	0.352 in	Board to Cable/Wire	0.144 in	3.66 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0
Molex 0557550419	Natural	Kinked Pin Solder	0.13 in	3.3 mm	Latch Lock	All	Through Hole	Board Guide	4	Square	13.45 mm	Header	Male Pin	Tin	1	Automotive General Purpose Industrial	Brass	0.079 in	2 mm	11.1 mm	0.437 in	Shrouded - 4 Wall	8.94 mm	0.352 in	Board to Cable/Wire	0.144 in	3.66 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0
