CHPHT Series

Manufacturer: Vishay Dale

Catalog

Catalog

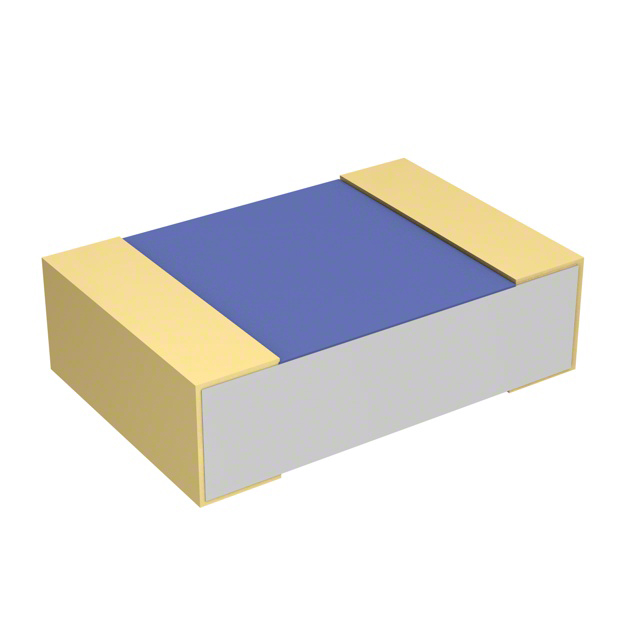

THICK FILM RESISTORS - SMD CHPHT 0805 100PPM 499U 1% G TR E4

Part	Features	Temperature Coefficient	Resistance	Power (Watts)	Tolerance	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length	Composition	Package / Case	Number of Terminations
Vishay Dale CHPHT0805K4990FGT	Moisture Resistant	100 ppm/°C	499 Ohm	0.02 W	1 %	0805	230 °C	-55 °C	0.02 in	0.049 in	0.073 in	Thick Film	0805 (2012 Metric)	2
Vishay Dale CHPHT0603LR100JNT
Vishay Dale CHPHT0603K4703FGW

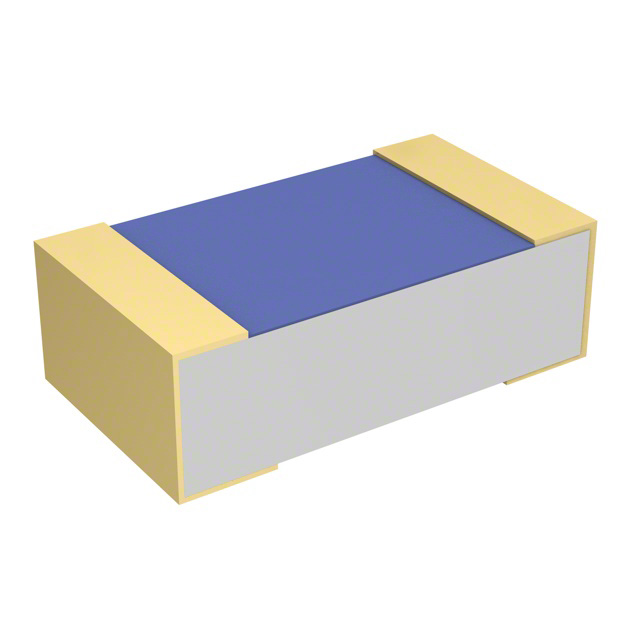

Vishay Dale CHPHT0603K21R5FGT	Moisture Resistant	100 ppm/°C	21.5 Ohm	0.0125 W	1 %	0603	230 °C	-55 °C	0.02 in	0.035 in	0.063 in	Thick Film	0603 (1608 Metric)	2
Vishay Dale CHPHT0805K8200FGT
Vishay Dale CHPHT0603K56R2FGT
Vishay Dale CHPHT0603L2202GGT
Vishay Dale CHPHT0805K1653FGT
Vishay Dale CHPHT0805K2324FGT
Vishay Dale CHPHT0805K1742FGT
