AA03E Series | Phihong USA | Zenode.ai

Catalog

Wall Mount AC Adapters 2.75W 5V .55A EU Plug 2.1x5.5

Part	Operating Temperature (Max)	Operating Temperature (Min)	Input Type	Approval Agency	Current - Output (Max)	Voltage - Output	Input Connector	No Load Power Consumption (Max)	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Region Utilized	Power (Watts)	Polarization	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Output Connector O.D.	Output Connector	Output Connector Length	Output Connector I.D.	Cord Length	Form	Efficiency	Applications	Standard Number	No Load Power Consumption
Phihong USA AA03E-075A-R	40 °C	0 °C	Fixed Blade	CE	366 mA	7.5 V	CEE 7/16	23 mW	1.5 in	0.83 in	3.02 in	Europe	2.75 W	Positive Center	90 V	264 V	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	59 in	Wall Mount (Class II)	CoC Tier 2 Level VI	ITE (Commercial)	62368-1

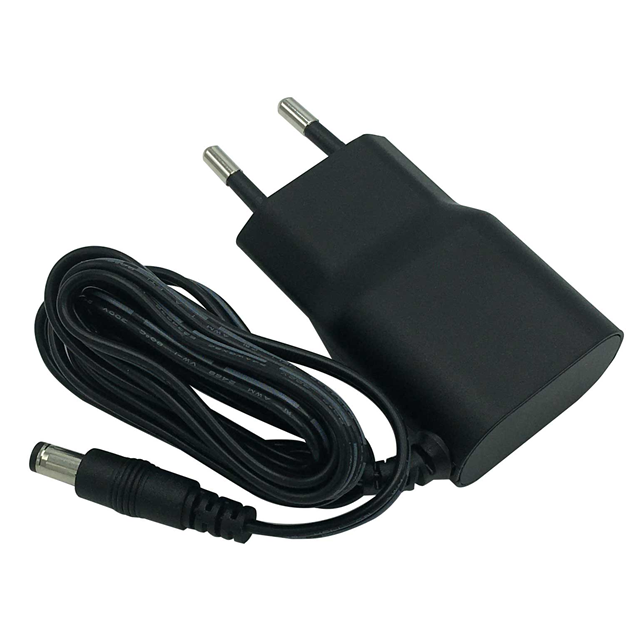

Phihong USA AA03E-090A-R	40 °C	0 °C	Fixed Blade	CE	306 mA	9 V	CEE 7/16		1.5 in	0.83 in	2.28 in	Europe	2.75 W	Positive Center	90 V	264 V	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	59 in	Wall Mount (Class II)	CoC Tier 2 Level VI	ITE (Commercial)	62368-1	26 mW

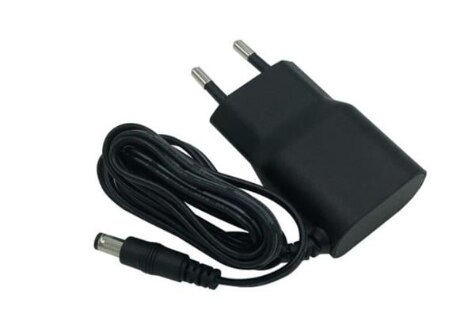

Phihong USA AA03E-120A-R	40 °C	0 °C	Fixed Blade	CE	229 mA	12 V	CEE 7/16		1.5 in	0.83 in	2.28 in	Europe	2.75 W	Positive Center	90 V	264 V	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	59 in	Wall Mount (Class II)	CoC Tier 2 Level VI	ITE (Commercial)	62368-1	30 mW
Phihong USA AA03E-050A-R	40 °C	0 °C	Fixed Blade	CE	550 mA	5 VDC	CEE 7/16		1.5 in	0.83 in	2.28 in	Europe	2.75 W	Positive Center	90 V	264 V	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	59 in	Wall Mount (Class II)	CoC Tier 2 Level VI	ITE (Commercial)	62368-1	27.8 mW
