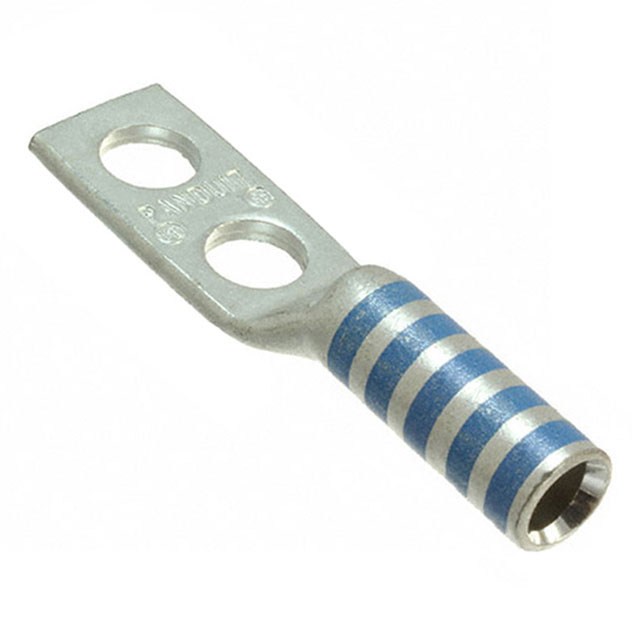

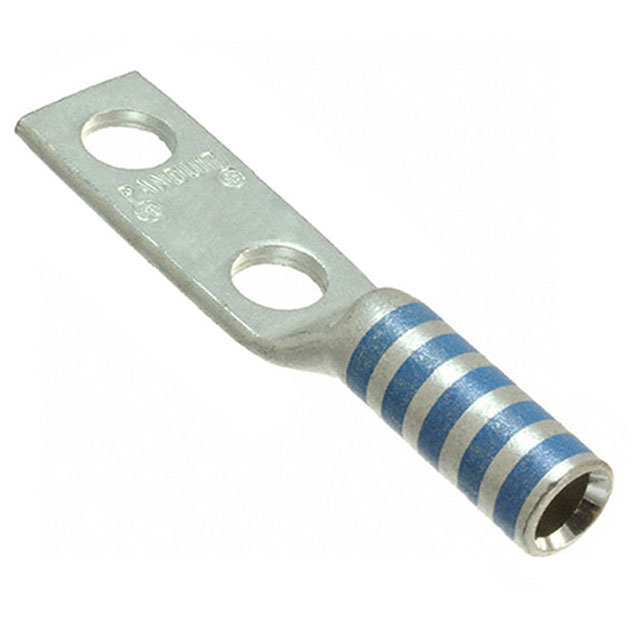

LCC400 Series

Catalog

CONN TERM RECT TONG 400 MCM #3/8

Part	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Terminal Type	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Color	Contact Material	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Insulation	Wire Gauge	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Mounting Type	Terminal Style	Termination	Tab Thickness	Tab Thickness	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Diameter - Ring ID [diameter]
Panduit Corp LCC400-38DH-6	10.41 mm	0.41 "	Rectangular Tongue	24.13 mm	0.95 in	Blue	Copper	0.76 in	19.3 mm	Non-Insulated	400 MCM (kcmil)	35.31 mm	1.39 in	Electro-Tin	45° Angle Free Hanging (In-Line)	Two Stud Holes	Barrel Crimp	0.18 in	4.57 mm	3/8 Stud
Panduit Corp LCC400-38D-6	10.41 mm	0.41 "	Rectangular Tongue	24.13 mm	0.95 in	Blue	Copper	0.76 in	19.3 mm	Non-Insulated	400 MCM (kcmil)	35.31 mm	1.39 in	Electro-Tin	Free Hanging (In-Line)	Two Stud Holes	Barrel Crimp	0.18 in	4.57 mm	3/8 Stud	4.92 "	124.97 mm

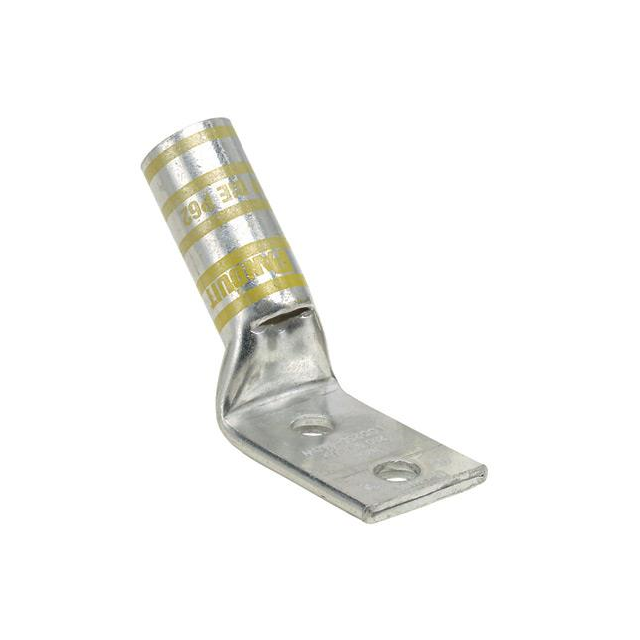

Panduit Corp LCC400-38DWH-6	10.41 mm	0.41 "	Rectangular Tongue	24.13 mm	0.95 in	Blue	Copper	0.76 in	19.3 mm	Non-Insulated	400 MCM (kcmil)	35.31 mm	1.39 in	Electro-Tin	45° Angle Free Hanging (In-Line)	Two Stud Holes	Barrel Crimp	0.18 in	4.57 mm	3/8 Stud

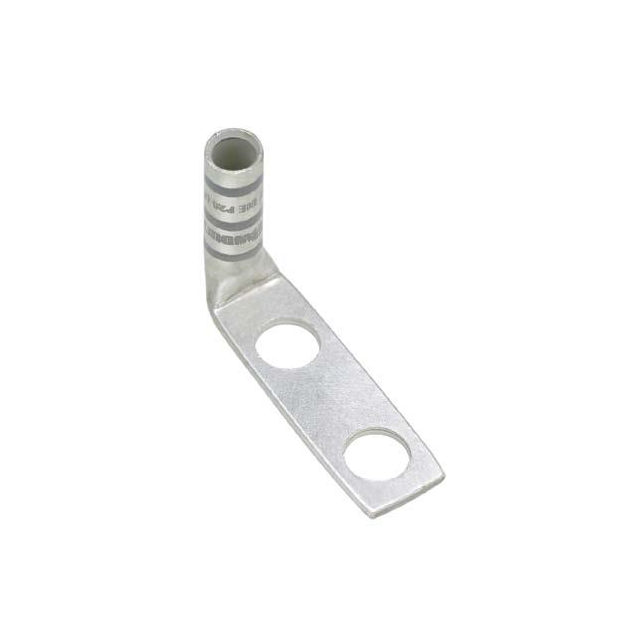

Panduit Corp LCC400-12F-6	0.53 in		Rectangular Tongue	24.13 mm	0.95 in	Blue	Copper	0.76 in	19.3 mm	Non-Insulated	400 MCM (kcmil)	35.31 mm	1.39 in	Electro-Tin	Free Hanging (In-Line) Right Angle	Two Stud Holes	Barrel Crimp	0.18 in	4.57 mm	1/2 Stud			13.46 mm
Panduit Corp LCC400-38DF-6	10.41 mm	0.41 "	Rectangular Tongue	24.13 mm	0.95 in	Blue	Copper	0.76 in	19.3 mm	Non-Insulated	400 MCM (kcmil)	35.31 mm	1.39 in	Electro-Tin	Free Hanging (In-Line) Right Angle	Two Stud Holes	Barrel Crimp	0.18 in	4.57 mm	3/8 Stud
