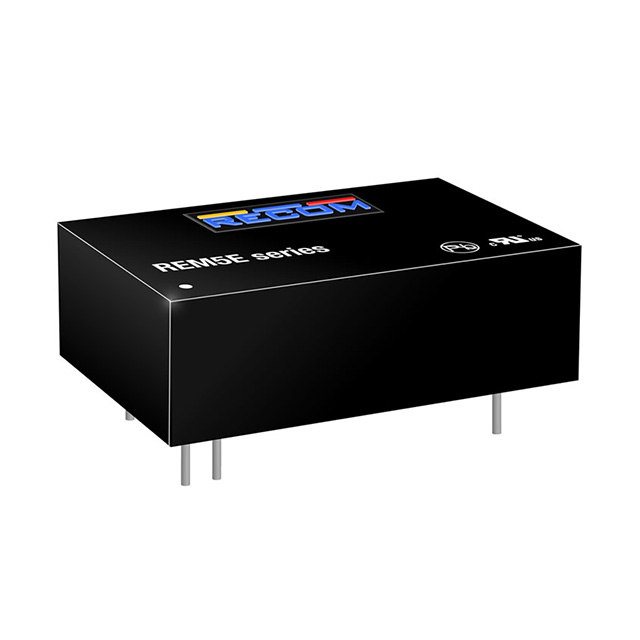

REM5E Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 2:1, 5 W, 1 OUTPUT, 5 V

...

Part	Voltage - Isolation	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Features	Voltage - Output 1	Package / Case	Current - Output (Max) [Max]	Power (Watts)	Approval Agency	Type	Voltage - Input (Min) [Min]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]
Recom Power REM5E-0505S/R10/A/CTRL/X1	10000 VDC	Medical	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	1	Through Hole	OCP OVP Remote On/Off SCP UVLO	5 V	24-DIP Module 7 Leads	1 A	5 W	CB cURus	Isolated Module	4.5 V	75 %	80 °C	-40 C
Recom Power REM5E-0509D/R8/A/X1	8 kV	Medical	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	9 V	2	Through Hole	OCP OVP SCP UVLO	9 V	24-DIP Module 7 Leads		5 W	CB cURus	Isolated Module	4.5 V	80 %	80 °C	-40 C	-9 V	277 mA	277 mA

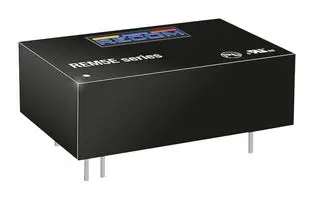

Recom Power REM5E-4812D/R10/A/CTRL	10000 VDC	Medical	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	75 V	2	Through Hole	OCP OVP Remote On/Off SCP	12 V	24-DIP Module 7 Leads	208 mA	5 W	CB cURus	Isolated Module	36 V	84 %	80 °C	-40 C	-12 V			208 mA
Recom Power REM5E-4815D/R8/A	8 kV	Medical	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	75 V	2	Through Hole	OCP OVP SCP	15 V	24-DIP Module 7 Leads	166 mA	5 W	CB cURus	Isolated Module	36 V	84 %	80 °C	-40 C	-15 V
Recom Power REM5E-4815S/R10/A/CTRL/X1	10000 VDC	Medical	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	75 V	1	Through Hole	OCP OVP Remote On/Off SCP UVLO	15 V	24-DIP Module 7 Leads	333 mA	5 W	CB cURus	Isolated Module	36 V	84 %	80 °C	-40 C

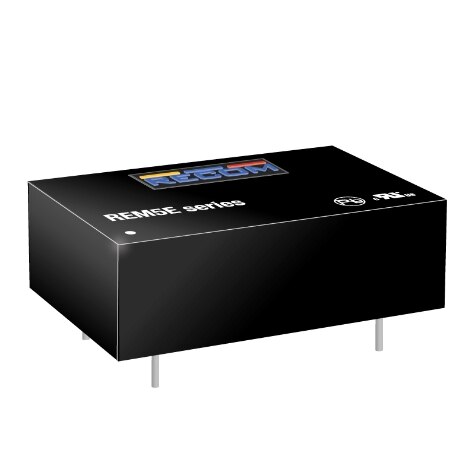

Recom Power REM5E-4805S/R10/A/X1	10000 VDC	Medical	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	75 V	1	Through Hole	OCP OVP SCP UVLO	5 V	24-DIP Module 7 Leads	1 A	5 W	CB cURus	Isolated Module	36 V		80 °C	-40 C
Recom Power REM5E-1205D/R8/A/CTRL/X1	8 kV	Medical	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	2	Through Hole	OCP OVP Remote On/Off SCP UVLO	5 V	24-DIP Module 7 Leads		5 W	CB cURus	Isolated Module	9 V	80 %	80 °C	-40 C	-5 V	500 mA
Recom Power REM5E-1205S/R10/A/CTRL	10000 VDC	Medical	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	1	Through Hole	OCP OVP Remote On/Off SCP	5 V	24-DIP Module 7 Leads	1 A	5 W	CB cURus	Isolated Module	9 V	80 %	80 °C	-40 C
Recom Power REM5E-2405D/R8/A/CTRL/X1	8 kV	Medical	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	36 V	2	Through Hole	OCP OVP Remote On/Off SCP UVLO	5 V	24-DIP Module 7 Leads		5 W	CB cURus	Isolated Module	18 V	81 %	80 °C	-40 C	-5 V	500 mA
Recom Power REM5E-1205S/R6/A/SMD	6000 VDC	Medical	0.8 "	0.43 in	31.8 mm	10.9 mm	20.3 mm	1.25 in	18 V	1	Surface Mount	OCP OVP SCP	5 V	24-SMD Module 18 Leads	1 A	5 W	CB cURus	Isolated Module	9 V	80 %	80 °C	-40 C
