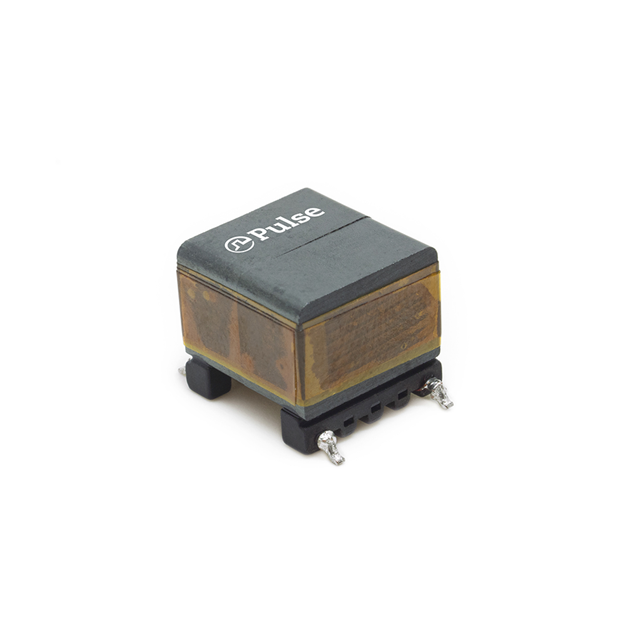

PAC6006.xxxNLT Series
Common Mode Chokes / Filters Round Wire 360uH 10A DCR=8.6mOhms 40%
Manufacturer: Pulse Electronics
Catalog
Common Mode Chokes / Filters Round Wire 360uH 10A DCR=8.6mOhms 40%
Beta
⌘K
Common Mode Chokes / Filters Round Wire 360uH 10A DCR=8.6mOhms 40%
Common Mode Chokes / Filters Round Wire 360uH 10A DCR=8.6mOhms 40%
Common Mode Chokes / Filters Round Wire 360uH 10A DCR=8.6mOhms 40%
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Impedance @ Frequency | Package / Case | Number of Lines | Current Rating (Max) [Max] | DC Resistance (DCR) (Max) | Height (Max) [z] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 13.5 mm | 0.531 in | 15.5 mm | 0.61 in | Surface Mount | 125 °C | -40 C | 1.6 kOhms | Horizontal 4 J-Lead | 2 | 10 A | 8 mOhm | 0.531 in | 13.5 mm |
