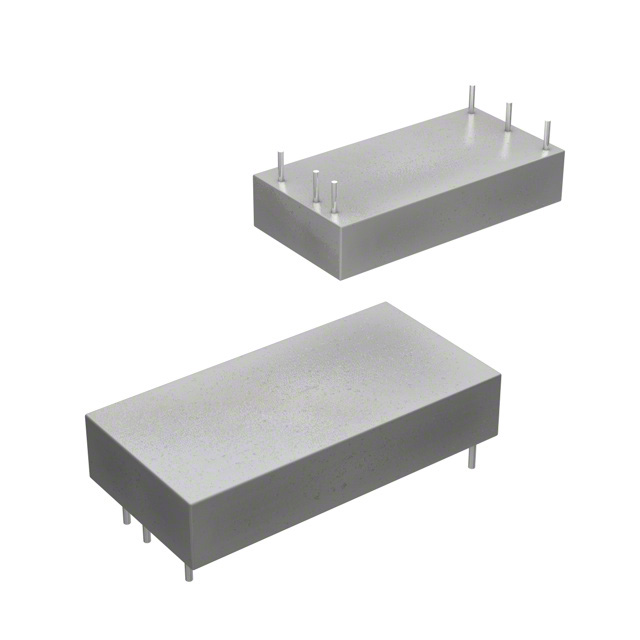

RP30-F Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W DC/DC 1.6KV REG 2:1 18-36VIN 15VOUT

...

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Output 1	Voltage - Input (Max) [Max]	Power (Watts)	Package / Case	Control Features	Voltage - Isolation	Features	Size / Dimension	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Type	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)
Recom Power RP30-2415SF	Through Hole	85 °C	-40 C	ITE (Commercial)	15 V	36 V	30 Watts	6-DIP Module	Active High Enable	1.6 kV	OCP OTP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	1	91 %	18 V	Isolated Module	2 A
Recom Power RP30-4805DF/N-HC	Through Hole	85 °C	-40 C	ITE (Commercial)	5 V	75 V	30 Watts	6-DIP Module	Active Low Enable	1.6 kV	OCP OTP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	2	90 %	36 V	Isolated Module		-5 V	3 A
Recom Power RP30-483.3SF/N-HC	Through Hole	85 °C	-40 C	ITE (Commercial)	3.3 V	75 V	30 Watts	6-DIP Module	Active Low Enable	1.6 kV	OCP OTP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	1	87 %	36 V	Isolated Module	8 A
Recom Power RP30-2412DF	Through Hole	85 °C	-40 C	ITE (Commercial)	12 V	36 V	30 Watts	6-DIP Module	Active High Enable	1.6 kV	OCP OTP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	2	89 %	18 V	Isolated Module		-12 V	1.25 A
Recom Power RP30-1205SF-HC	Through Hole	85 °C	-40 C	ITE (Commercial)	5 V	18 V	30 Watts	6-DIP Module	Active High Enable	1.6 kV	OCP OTP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	1	87 %	9 V	Isolated Module	6 A
Recom Power RP30-2412SF/N-HC	Through Hole	85 °C	-40 C	ITE (Commercial)	12 V	36 V	30 Watts	6-DIP Module	Active Low Enable	1.6 kV	OCP OTP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	1	91 %	18 V	Isolated Module	2.5 A
Recom Power RP30-4812SF-HC	Through Hole	85 °C	-40 C	ITE (Commercial)	12 V	75 V	30 Watts	6-DIP Module	Active High Enable	1.6 kV	OCP OTP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	1	91 %	36 V	Isolated Module	2.5 A
Recom Power RP30-1205SF/N-HC	Through Hole	85 °C	-40 C	ITE (Commercial)	5 V	18 V	30 Watts	6-DIP Module	Active Low Enable	1.6 kV	OCP OTP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	1	87 %	9 V	Isolated Module	6 A
Recom Power RP30-4812DF/N	Through Hole	85 °C	-40 C	ITE (Commercial)	12 V	75 V	30 Watts	6-DIP Module	Active Low Enable	1.6 kV	OCP OTP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	2	88 %	36 V	Isolated Module		-12 V	1.25 A
Recom Power RP30-1212SF/N	Through Hole	85 °C	-40 C	ITE (Commercial)	12 V	18 V	30 Watts	6-DIP Module	Active Low Enable	1.6 kV	OCP OTP OVP Remote On/Off SCP	0.4 in 10.2 mm 25.4 mm 50.8 mm	1	89 %	9 V	Isolated Module	2.5 A
