CLU703 Series
Manufacturer: Citizen Finedevice Co Ltd
Beta
⌘K

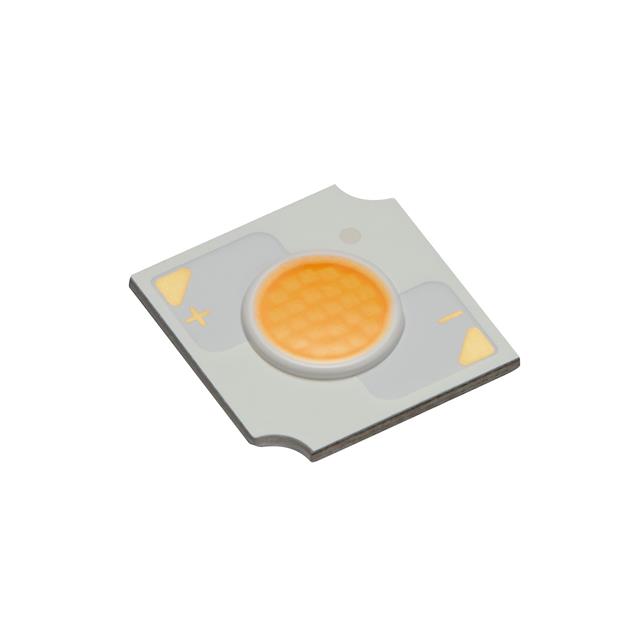

LED COB CLU703 WM WHT SQ 3000K
| Part | Height [z] | Voltage - Forward (Vf) (Typ) | Type | Lumens/Watt @ Current - Test | Current - Test | CRI (Color Rendering Index) | Lens Type | Current - Max [Max] | CCT (K) | CCT (K) | Size / Dimension [y] | Size / Dimension [x] | Color | Temperature - Test | Configuration | Features | Light Emitting Surface (LES) [diameter] | Luminous Flux @ Current/Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Citizen Finedevice Co Ltd | 1.4 mm | 36.5 V | Chip On Board (COB) | 128 lm/W | 350 mA | 80 | Flat | 600 mA | 3-Step MacAdam Ellipse | 3000 K | 13.5 mm | 13.5 mm | Warm White | 85 °C | Square | With Connector | 6 mm | |
Citizen Finedevice Co Ltd | 1.4 mm | 36.5 V | Chip On Board (COB) | 100 lm/W | 350 mA | 97 | Flat | 600 mA | 3-Step MacAdam Ellipse | 3000 K | 13.5 mm | 13.5 mm | Warm White | 85 °C | Square | With Connector | 6 mm | 1370 lm |
