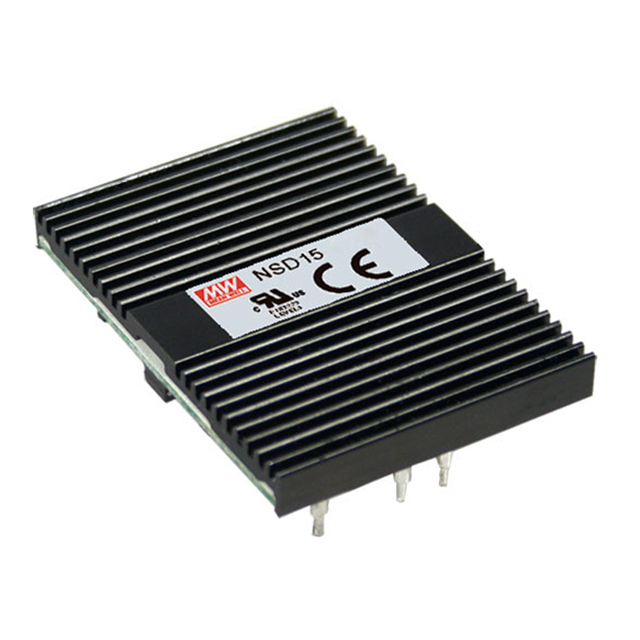

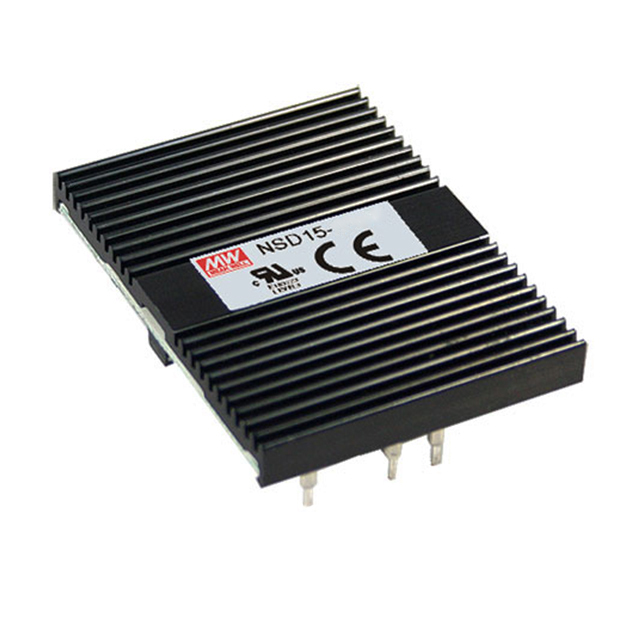

NSD15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER +/-5V 15W
| Part | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Isolation | Power (Watts) | Type | Voltage - Output 2 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Package / Case | Current - Output (Max) | Applications | Number of Outputs | Voltage - Output 1 | Features | Mounting Type | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 9.4 V | 70 °C | -25 °C | 76 % | 1.5 kV | 15 W | Isolated Module | -5 V | 50.8 mm | 38.1 mm | 2 in | 1.5 " | 9.8 mm | 0.39 " | 8-DIP Module 7 Leads | 1.5 A | ITE (Commercial) | 2 | 5 V | OCP OVP Remote On/Off SCP | Through Hole | 36 V | |
 MEAN WELL USA Inc. | 18 V | 70 °C | -25 °C | 84 % | 1.5 kV | 15 W | Isolated Module | 50.8 mm | 38.1 mm | 2 in | 1.5 " | 9.8 mm | 0.39 " | 8-DIP Module 6 Leads | ITE (Commercial) | 1 | 12 V | OCP OVP Remote On/Off SCP | Through Hole | 72 V | 1.25 A | ||
MEAN WELL USA Inc. | 18 V | 70 °C | -25 °C | 81 % | 1.5 kV | 15 W | Isolated Module | 50.8 mm | 38.1 mm | 2 in | 1.5 " | 9.8 mm | 0.39 " | 8-DIP Module 6 Leads | ITE (Commercial) | 1 | 5 V | OCP OVP Remote On/Off SCP | Through Hole | 72 V | 3 A | ||
MEAN WELL USA Inc. | 9.4 V | 70 °C | -25 °C | 73 % | 1.5 kV | 12 W | Isolated Module | 50.8 mm | 38.1 mm | 2 in | 1.5 " | 9.8 mm | 0.39 " | 8-DIP Module 6 Leads | ITE (Commercial) | 1 | 3.3 V | OCP OVP Remote On/Off SCP | Through Hole | 36 V | 3.75 A | ||
MEAN WELL USA Inc. | 9.4 V | 70 °C | -25 °C | 80 % | 1.5 kV | 15 W | Isolated Module | -15 V | 50.8 mm | 38.1 mm | 2 in | 1.5 " | 9.8 mm | 0.39 " | 8-DIP Module 7 Leads | 500 mA | ITE (Commercial) | 2 | 15 V | OCP OVP Remote On/Off SCP | Through Hole | 36 V | |
MEAN WELL USA Inc. | 9.4 V | 70 °C | -25 °C | 81 % | 1.5 kV | 15 W | Isolated Module | 50.8 mm | 38.1 mm | 2 in | 1.5 " | 9.8 mm | 0.39 " | 8-DIP Module 6 Leads | ITE (Commercial) | 1 | 15 V | OCP OVP Remote On/Off SCP | Through Hole | 36 V | 1 A | ||
MEAN WELL USA Inc. | 18 V | 70 °C | -25 °C | 80 % | 1.5 kV | 15 W | Isolated Module | -5 V | 50.8 mm | 38.1 mm | 2 in | 1.5 " | 9.8 mm | 0.39 " | 8-DIP Module 7 Leads | 1.5 A | ITE (Commercial) | 2 | 5 V | OCP OVP Remote On/Off SCP | Through Hole | 72 V | |
MEAN WELL USA Inc. | 18 V | 70 °C | -25 °C | 85 % | 1.5 kV | 15 W | Isolated Module | 50.8 mm | 38.1 mm | 2 in | 1.5 " | 9.8 mm | 0.39 " | 8-DIP Module 6 Leads | ITE (Commercial) | 1 | 15 V | OCP OVP Remote On/Off SCP | Through Hole | 72 V | 1 A | ||
MEAN WELL USA Inc. | 9.4 V | 70 °C | -25 °C | 77 % | 1.5 kV | 15 W | Isolated Module | 50.8 mm | 38.1 mm | 2 in | 1.5 " | 9.8 mm | 0.39 " | 8-DIP Module 6 Leads | ITE (Commercial) | 1 | 5 V | OCP OVP Remote On/Off SCP | Through Hole | 36 V | 3 A | ||
MEAN WELL USA Inc. | 18 V | 70 °C | -25 °C | 84 % | 1.5 kV | 15 W | Isolated Module | -15 V | 50.8 mm | 38.1 mm | 2 in | 1.5 " | 9.8 mm | 0.39 " | 8-DIP Module 7 Leads | 500 mA | ITE (Commercial) | 2 | 15 V | OCP OVP Remote On/Off SCP | Through Hole | 72 V |
