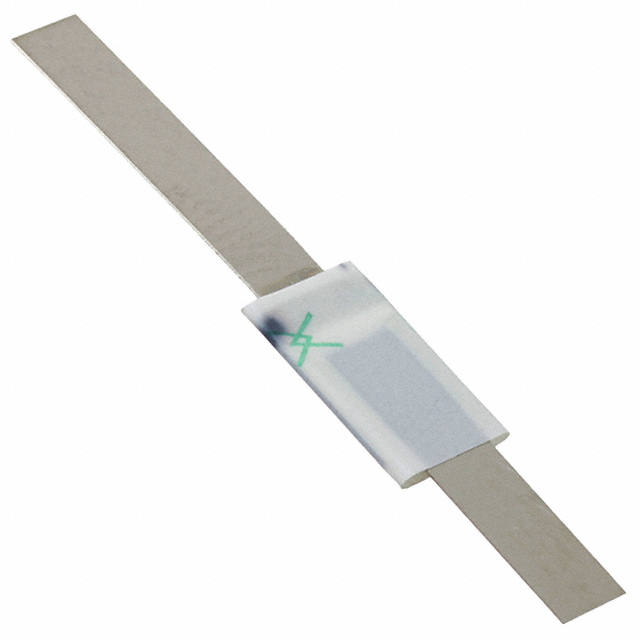

VLP Series
Manufacturer: LITTELFUSE
Beta
⌘K
RESETTABLE FUSES - PPTC 2.1A 16V 60A IMAX
| Part | Approval Agency | Current - Max [Max] | Resistance - Initial (Ri) (Min) [Min] | Voltage - Max [Max] | Time to Trip | Mounting Type | Current - Hold (Ih) (Max) [Max] | Current - Trip (It) | Package / Case | Resistance - Post Trip (R1) (Max) [Max] | Thickness (Max) [Max] | Thickness (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | CSA TUV UL | 100 A | 18 mOhms | 16 V | 5 s | User Defined | 2.1 A | 4.7 A | Strap | 60 mOhms | 0.8 mm | 0.032 " | 85 °C | -40 C | 7.1 mm | 0.28 in | 0.648 in | 16.45 mm | Polymeric |
