AMW007 Series

Catalog

RF TXRX MODULE WIFI SMD

Part	Frequency [Min]	Frequency [Max]	Data Rate	RF Family/Standard	Current - Transmitting [Max]	Current - Transmitting [Min]	Current - Receiving	Protocol	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Serial Interfaces	Package / Case	Power - Output	Utilized IC / Part	Frequency	Contents	Type	Supplied Contents	For Use With/Related Products	Voltage - Supply
SILICON LABS AMW007-1.3.0R	2.412 GHz	2.484 GHz	72.2 Mbps	WiFi	200 mA	100 mA	65 mA	802.11b/g/n	Surface Mount	85 °C	-40 C	3.6 V	3 V	-93 dBm	PWM SPI UART	38-SMD Module	20 dBm

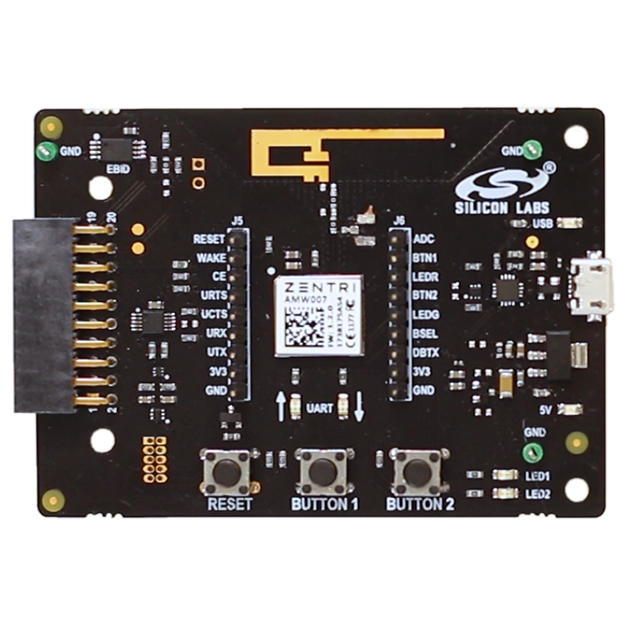

SILICON LABS AMW007-E04																		AMW006	2.4 GHz	Board(s)	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)

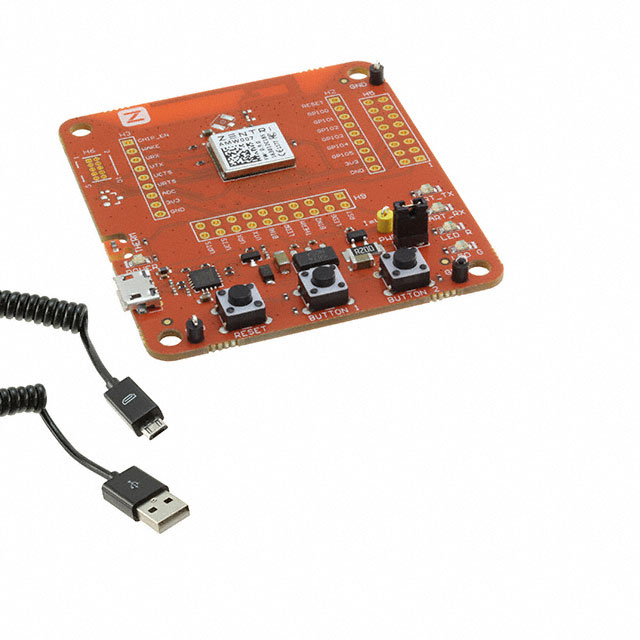

SILICON LABS AMW007-E03																		AMW006	2.4 GHz	Board(s)	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	Board(s)	AMW006
SILICON LABS AMW007-1.4.0R
SILICON LABS AMW007-1.1.2R
SILICON LABS AMW007-1.2.0R				WiFi	200 mA	100 mA	65 mA	802.11b/g/n	Surface Mount	85 °C	-40 C			-93 dBm	SPI UART	Module	20 dBm		2.4 GHz					3.3 V
SILICON LABS AMW007-1.4.0
