CHB300W-110S-CM Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

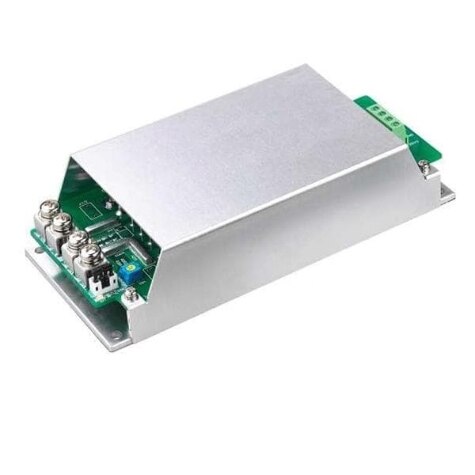

ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT DC-DC CONVERTER WITH COVER, CHASSIS MOUNT, 300 WATT, 4:1 INPUT, 43-160VIN, 5VOUT, 86.5%, 60000UF, NEGATIVE LOGIC REMOTE ON/OFF

Part	Mounting Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Efficiency	Approval Agency	Type	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Standard Number	Voltage - Input (Max) [Max]	Voltage - Isolation	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Cincon Electronics Co. LTD CHB300W-110S05N-CMFD	Chassis Mount	5 V	-40 °C	100 °C	60 A	86.5 %	CE UKCA	Enclosed	43 V	1	ITE (Commercial)	60950-1 62368-1	160 V	3000 V	300 W	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in
Cincon Electronics Co. LTD CHB300W-110S48N-CMFD	Chassis Mount	48 V	-40 °C	100 °C	6.25 A	90.5 %	CE UKCA	Enclosed	43 V	1	ITE (Commercial)	60950-1 62368-1	160 V	3000 V	300 W	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in
Cincon Electronics Co. LTD CHB300W-110S12-CMFD	Chassis Mount	12 V	-40 °C	100 °C	25 A		CE UKCA	Enclosed	43 V	1	ITE (Commercial)	60950-1 62368-1	160 V	3000 V	300 W	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in
Cincon Electronics Co. LTD CHB300W-110S24N-CMFC	Chassis Mount	24 V	-40 °C	100 °C	12.5 A	89 %	CE UKCA	Open Frame	43 V	1	ITE (Commercial)	60950-1 62368-1	160 V	3000 V	300 W	1.52 in	165 mm	38.5 mm	76.2 mm	6.5 in	3 "
Cincon Electronics Co. LTD CHB300W-110S24-CMFD	Chassis Mount	24 V	-40 °C	100 °C	12.5 A	89 %	CE UKCA	Enclosed	43 V	1	ITE (Commercial)	60950-1 62368-1	160 V	3000 V	300 W	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in
Cincon Electronics Co. LTD CHB300W-110S48-CMFD	Chassis Mount	48 V	-40 °C	100 °C	6.25 A	90.5 %	CE UKCA	Enclosed	43 V	1	ITE (Commercial)	60950-1 62368-1	160 V	3000 V	300 W	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in
Cincon Electronics Co. LTD CHB300W-110S28N-CMFD	Chassis Mount	28 V	-40 °C	100 °C	10.7 A	89 %	CE UKCA	Enclosed	43 V	1	ITE (Commercial)	60950-1 62368-1	160 V	3000 V	300 W	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in
Cincon Electronics Co. LTD CHB300W-110S12N-CMFD	Chassis Mount	12 V	-40 °C	100 °C	25 A		CE UKCA	Enclosed	43 V	1	ITE (Commercial)	60950-1 62368-1	160 V	3000 V	300 W	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in
Cincon Electronics Co. LTD CHB300W-110S28-CMFD	Chassis Mount	28 V	-40 °C	100 °C	10.7 A	89 %	CE UKCA	Enclosed	43 V	1	ITE (Commercial)	60950-1 62368-1	160 V	3000 V	300 W	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in
Cincon Electronics Co. LTD CHB300W-110S05-CMFD	Chassis Mount	5 V	-40 °C	100 °C	60 A	86.5 %	CE UKCA	Enclosed	43 V	1	ITE (Commercial)	60950-1 62368-1	160 V	3000 V	300 W	1.57 "	165 mm	40 mm	78.6 mm	6.5 in	3.09 in
