PJ-044 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

CONN DC POWER JACK RCP 2 POS SOLDER POT ST THRU-HOLE 3 TERMINAL 1 PORT

Part	Housing Material	Contact Material - Plating	Contact Material [custom]	Body Color	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Connector Type	Material Flammability Rating	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Gender	Mating Length/Depth	Mating Length/Depth	Voltage - Rated	Shielding	Termination	Internal Switch(s)	Current Rating (Amps)	Mounting Type	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]

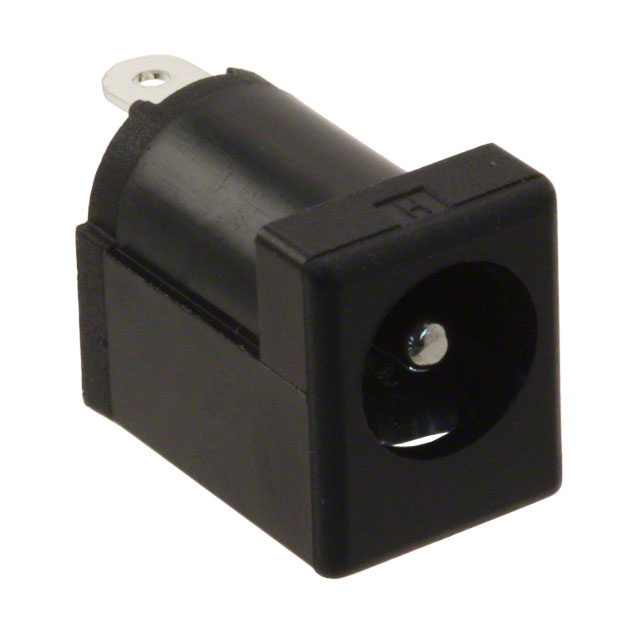

Same Sky (Formerly CUI Devices) PJ-044A	Polybutylene Terephthalate (PBT)	Tin	Brass Copper Alloy	Black	0.079 in	0.256 in	2 mm	6.5 mm	Jack	UL94 V-0	0.083 " 0.217 in	2.1 mm 5.5 mm	85 °C	-25 °C	Board Guide	2	3	Male	0.354 in	9 mm	24 VDC	Unshielded	Solder Eyelet(s)	Single Switch Normally Closed	2.5 A	Through Hole
Same Sky (Formerly CUI Devices) PJ-044B	Polybutylene Terephthalate (PBT)	Tin	Brass Copper Alloy	Black	0.079 in	0.256 in	2 mm	6.5 mm	Jack	UL94 V-0			85 °C	-25 °C	Board Guide	2	3	Male	0.354 in	9 mm	24 VDC	Unshielded	Solder Eyelet(s)	Single Switch Normally Closed	2.5 A	Through Hole	0.217 in	2.5 mm	5.5 mm	0.098 in
Same Sky (Formerly CUI Devices) PJ-044B	Polybutylene Terephthalate (PBT)	Tin	Brass Copper Alloy	Black	0.079 in	0.256 in	2 mm	6.5 mm	Jack	UL94 V-0			85 °C	-25 °C	Board Guide	2	3	Male	0.354 in	9 mm	24 VDC	Unshielded	Solder Eyelet(s)	Single Switch Normally Closed	2.5 A	Through Hole	0.217 in	2.5 mm	5.5 mm	0.098 in
Same Sky (Formerly CUI Devices) PJ-044A	Polybutylene Terephthalate (PBT)	Tin	Brass Copper Alloy	Black	0.079 in	0.256 in	2 mm	6.5 mm	Jack	UL94 V-0	0.083 " 0.217 in	2.1 mm 5.5 mm	85 °C	-25 °C	Board Guide	2	3	Male	0.354 in	9 mm	24 VDC	Unshielded	Solder Eyelet(s)	Single Switch Normally Closed	2.5 A	Through Hole
