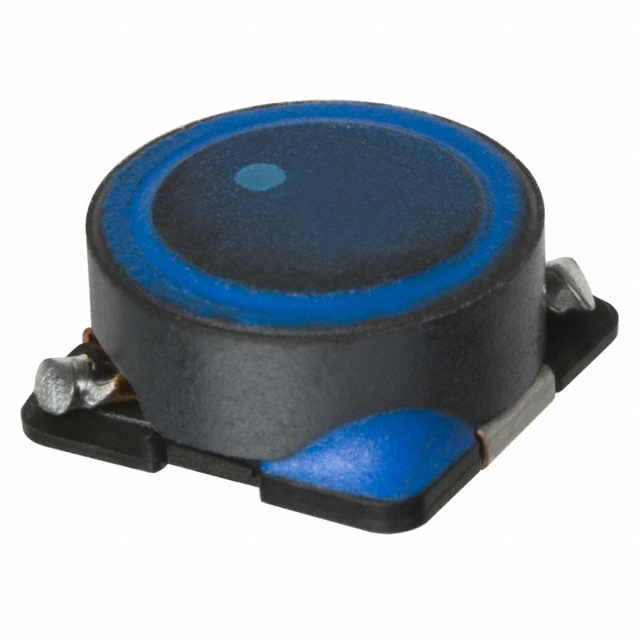

SLF Series

Catalog

POWER INDUCTORS - SMD SMD 22UH 1.9AMPS

Part	Current Rating (Amps)	Mounting Type	Current - Saturation (Isat)	Inductance	Material - Core	Type	DC Resistance (DCR) [Max]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Inductance Frequency - Test	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
TDK Corporation SLF10145T-220M1R9-PF	1.9 A	Surface Mount	2.1 A	22 µH	Ferrite	Drum Core Wirewound	70.9 mOhm	20 %	0.189 "	4.8 mm	0.398 in	10.1 mm	10.1 mm	0.398 in	-40 C	105 ░C	Nonstandard	1 kHz	Shielded
TDK Corporation SLF6028T-220MR77-PF	1.3 A	Surface Mount	770 mA	22 µH	Ferrite	Drum Core Wirewound	124.8 mOhm	20 %			0.236 "	6 mm	6 mm	0.236 in	-40 C	105 ░C	Nonstandard	100 kHz	Shielded	0.118 "	3 mm
TDK Corporation SLF12575T-221M1R3-PF	1.3 A	Surface Mount	1.3 A	220 µH	Ferrite	Drum Core Wirewound	310 mOhm	20 %			0.492 "	12.5 mm	12.5 mm	0.492 "	-40 C	105 ░C	Nonstandard	1 kHz	Shielded			0.309 "	7.85 mm
TDK Corporation SLF6028T-4R7M1R6-PF	2.5 A	Surface Mount	1.6 A	4.7 ÁH	Ferrite	Drum Core Wirewound		20 %			0.236 "	6 mm	6 mm	0.236 in	-40 C	105 ░C	Nonstandard	100 kHz	Shielded	0.118 "	3 mm			34.1 mOhm
TDK Corporation SLF7045T-150M1R1-PF	1.53 A	Surface Mount	1.1 A	15 µH	Ferrite	Drum Core Wirewound	62.4 mOhm	20 %	0.189 "	4.8 mm	0.276 in	7 mm	7 mm	0.276 "	-40 C	105 ░C	Nonstandard	100 kHz	Shielded
TDK Corporation SLF10165T-220M2R43PF	2.4 A	Surface Mount	2.7 A	22 µH	Ferrite	Drum Core Wirewound		20 %	0.268 "	6.8 mm	0.398 in	10.1 mm	10.1 mm	0.398 in	-40 C	105 ░C	Nonstandard	100 kHz	Shielded					53.8 mOhm
TDK Corporation SLF10165T-6R8N4R33PF	4.3 A	Surface Mount	4.6 A	6.8 µH	Ferrite	Drum Core Wirewound	18.2 mOhm	30 %	0.268 "	6.8 mm	0.398 in	10.1 mm	10.1 mm	0.398 in	-40 C	105 ░C	Nonstandard	100 kHz	Shielded
TDK Corporation SLF6025T-150MR88-PF	1.1 A	Surface Mount	880 mA	15 µH	Ferrite	Drum Core Wirewound		20 %	0.106 in		0.236 "	6 mm	6 mm	0.236 in	-40 C	105 ░C	Nonstandard	100 kHz	Shielded			2.7 mm		102 mOhm
TDK Corporation SLF7045T-6R8M1R7-PF	1.74 A	Surface Mount	1.7 A	6.8 µH	Ferrite	Drum Core Wirewound	46.8 mOhm	20 %	0.189 "	4.8 mm	0.276 in	7 mm	7 mm	0.276 "	-40 C	105 ░C	Nonstandard	100 kHz	Shielded
TDK Corporation SLF12565T-100M4R8-PF	4.8 A	Surface Mount	5 A	10 µH	Ferrite	Drum Core Wirewound		20 %	0.27 in		0.492 "	12.5 mm	12.5 mm	0.492 "	-20 ░C	105 ░C	Nonstandard	1 kHz	Shielded			6.85 mm		24.2 mOhm
