SMD4FR Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

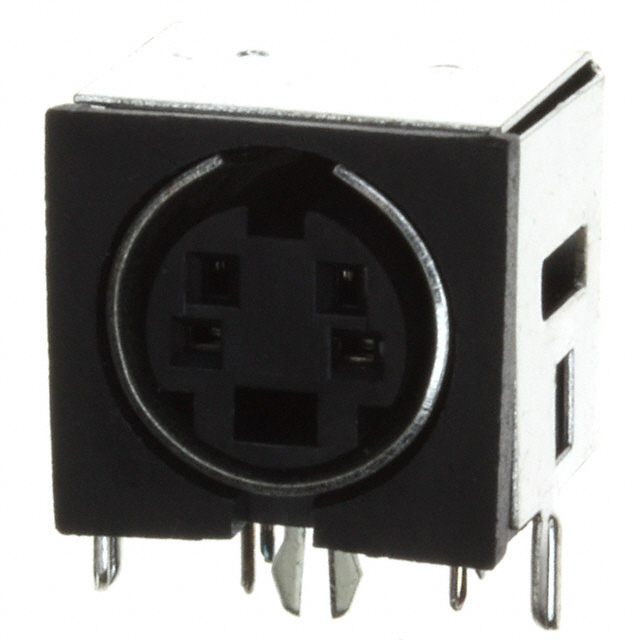

CONN RCPT FMALE MINI DIN 4P SLDR
| Part | Fastening Type | Mounting Type | Insert Material | Contact Finish - Mating | Shell Size - Insert | Connector Type | Voltage Rating | Orientation | Color | Primary Material | Material Flammability Rating | Termination | Number of Positions | Features | Applications | Contact Material | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Push-Pull | Right Angle Through Hole | Thermoplastic | Gold | Mini DIN | Receptacle Female Sockets | 12 VDC 100 VAC | Keyed | Black | Plastic | UL94 V-0 | Solder | 4 | Board Lock Ground | Communication Systems Instrumentation Medical | Copper Alloy | |
SWITCHCRAFT/CONXALL | Push-Pull | Right Angle Through Hole | Thermoplastic | Silver | Mini DIN | Receptacle Female Sockets | 12 VDC 100 VAC | Keyed | Black | Plastic | UL94 V-0 | Solder | 4 | Ground | Communication Systems Instrumentation Medical | Copper Alloy | |
 SWITCHCRAFT/CONXALL | Push-Pull | Right Angle Through Hole | Thermoplastic | Silver | Mini DIN | Receptacle Female Sockets | 12 VDC 100 VAC | Keyed | Silver | Plastic | UL94 V-0 | Solder | 4 | Board Lock Ground | Communication Systems Instrumentation Medical | Copper Alloy | Shielded |
