2380320 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

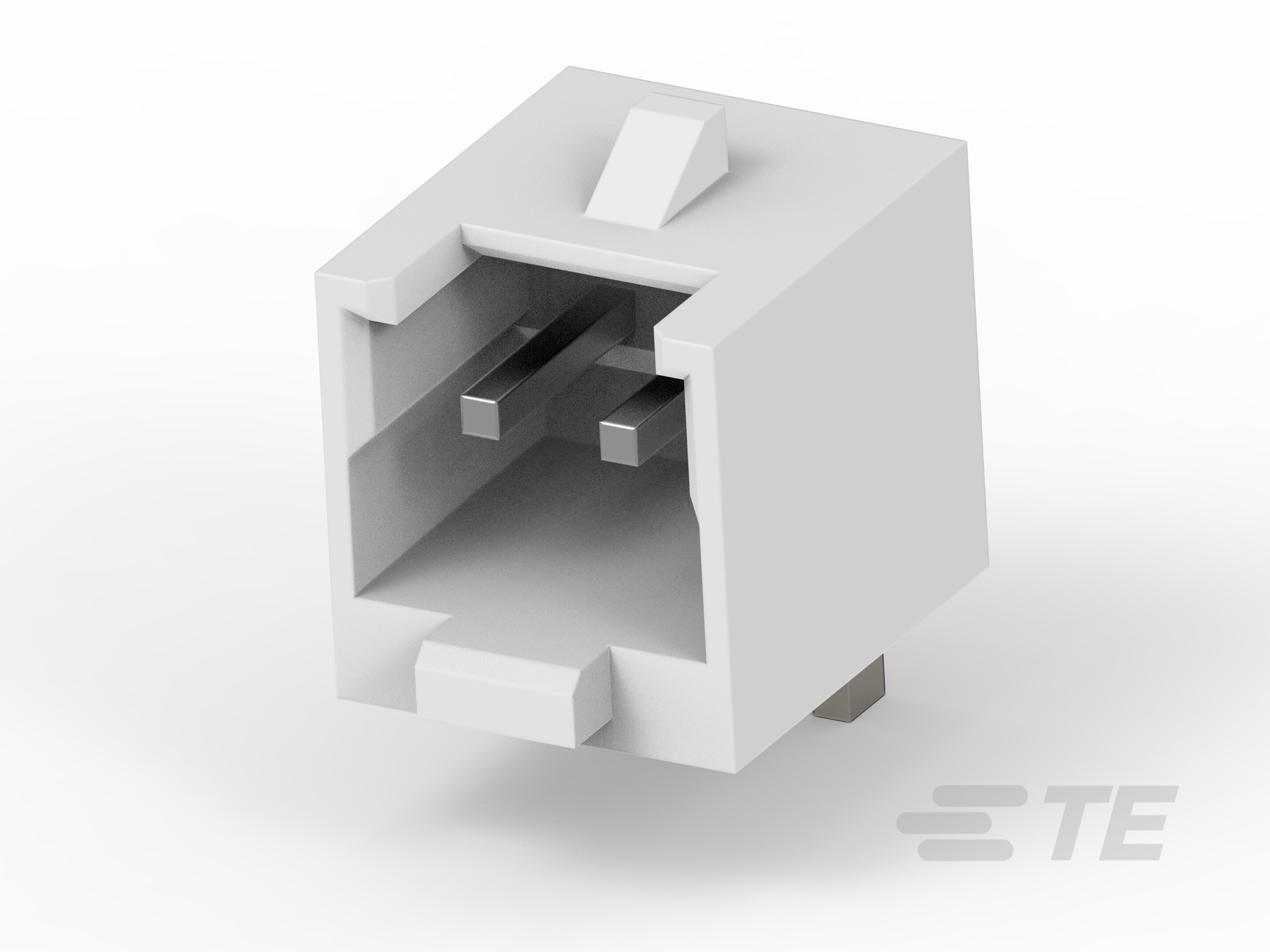

1.5P 2POS WTB VERT BRD W LATCH TIN NAT
| Part | Number of Positions Loaded | Shrouding | Insulation Material | Fastening Type | Material Flammability Rating | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Contact Shape | Contact Length - Mating | Contact Length - Mating | Voltage Rating | Contact Type | Contact Material | Contact Finish - Post | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Number of Positions | Number of Rows | Connector Type | Mounting Type | Insulation Color | Termination | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | All | Shrouded - 4 Wall | Plastic Halogen Free | Locking Ramp | UL94 V-0 | Pick and Place Solder Retention | 2.54 µm | 100 µin | Board to Cable/Wire | Square | 0.106 in | 2.7 mm | 50 VAC | Male Pin | Copper Alloy | Tin | 0.197 in | 5 mm | -40 °C | 105 ░C | 2.54 çm | 100 çin | Varies by Wire Gauge | 2 | 1 | Header | Surface Mount | Natural | Solder | |||
TE Connectivity Raychem Cable Protection | All | Shrouded - 4 Wall | Plastic Halogen Free | Locking Ramp | UL94 V-0 | Pick and Place Solder Retention | Board to Cable/Wire | Square | 0.106 in | 2.7 mm | 50 VAC | Male Pin | Copper Alloy | Gold | 0.197 in | 5 mm | -40 °C | 105 ░C | Varies by Wire Gauge | 7 | 1 | Header | Surface Mount | Black | Solder | Gold | Flash | Flash | ||||
TE Connectivity Raychem Cable Protection | All | Shrouded - 4 Wall | Plastic Halogen Free | Locking Ramp | UL94 V-0 | Pick and Place Solder Retention | Board to Cable/Wire | Square | 0.106 in | 2.7 mm | 50 VAC | Male Pin | Copper Alloy | Gold | 0.197 in | 5 mm | -40 °C | 105 ░C | Varies by Wire Gauge | 2 | 1 | Header | Surface Mount | Black | Solder | Gold | Flash | Flash |
