AM3894 Series

Catalog

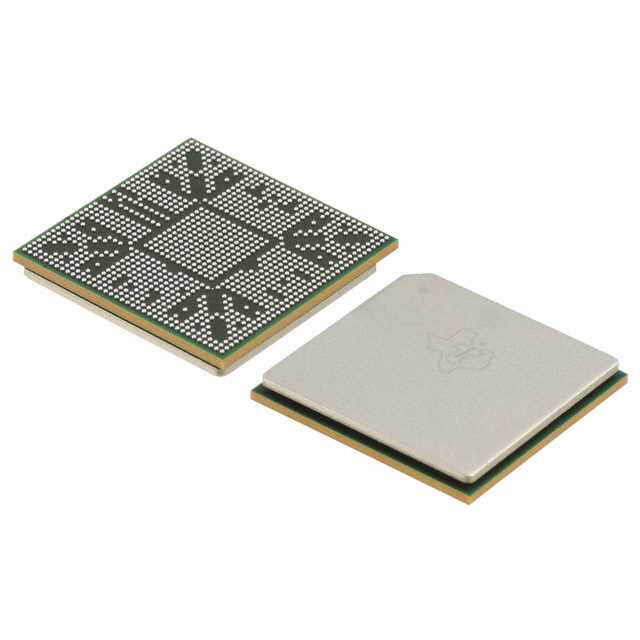

IC MPU SITARA 1.5GHZ 1031FCBGA

Part	Additional Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Number of Cores/Bus Width	Voltage - I/O	Core Processor	Ethernet	Ethernet	USB	SATA	Co-Processors/DSP	Speed	Supplier Device Package	Mounting Type	Display & Interface Controllers	Operating Temperature [custom]
Texas Instruments AM3894BCYG150	I2C McASP McBSP SD/SDIO SPI UART	95 °C	0 °C	1031-BFBGA FCBGA	1 Core 32 Bit	1.8 V 3.3 V	ARM® Cortex®-A8	10 Mbps 100 Mbps 1000 Mbps	2	USB 2.0 + PHY (2)	3 Gbps	Multimedia NEON™ SIMD	1.5 GHz	1031-FCBGA (25x25)	Surface Mount	HDMI HDVPSS
Texas Instruments AM3894CCYG135	I2C McASP McBSP SD/SDIO SPI UART	95 °C	0 °C	1031-BFBGA FCBGA	1 Core 32 Bit	1.8 V 3.3 V	ARM® Cortex®-A8	10 Mbps 100 Mbps 1000 Mbps	2	USB 2.0 + PHY (2)	3 Gbps	Multimedia NEON™ SIMD	1.35 GHz	1031-FCBGA (25x25)	Surface Mount	HDMI HDVPSS
Texas Instruments AM3894ACYG120	I2C McASP McBSP SD/SDIO SPI UART	95 °C	0 °C	1031-BFBGA FCBGA	1 Core 32 Bit	1.8 V 3.3 V	ARM® Cortex®-A8	10 Mbps 100 Mbps 1000 Mbps	2	USB 2.0 + PHY (2)	3 Gbps	Multimedia NEON™ SIMD	1.2 GHz	1031-FCBGA (25x25)	Surface Mount	HDMI HDVPSS
Texas Instruments AM3894BCYGA120	I2C McASP McBSP SD/SDIO SPI UART			1031-BFBGA FCBGA	1 Core 32 Bit	1.8 V 3.3 V	ARM® Cortex®-A8	10 Mbps 100 Mbps 1000 Mbps	2	USB 2.0 + PHY (2)	3 Gbps	Multimedia NEON™ SIMD	1.2 GHz	1031-FCBGA (25x25)	Surface Mount	HDMI HDVPSS	-40 °C 105 °C
Texas Instruments AM3894CCYGA120	I2C McASP McBSP SD/SDIO SPI UART			1031-BFBGA FCBGA	1 Core 32 Bit	1.8 V 3.3 V	ARM® Cortex®-A8	10 Mbps 100 Mbps 1000 Mbps	2	USB 2.0 + PHY (2)	3 Gbps	Multimedia NEON™ SIMD	1.2 GHz	1031-FCBGA (25x25)	Surface Mount	HDMI HDVPSS	-40 °C 105 °C
