1445999 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

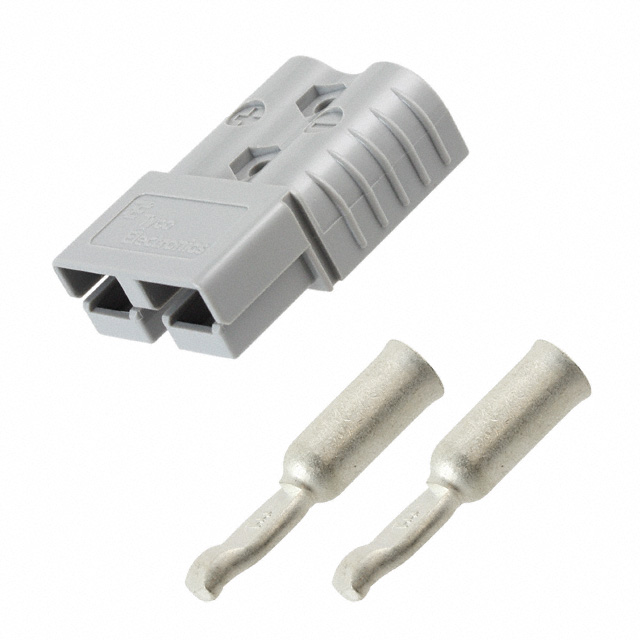

RECTANGULAR CONNECTOR, AMP POWER 120 SERIES, 2 CONTACTS, PLUG, RECEPTACLE, CRIMP, 1 ROW
| Part | Contact Material | Material - Insulation | Current Rating (Amps) | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Voltage Rating | Connector Style | Termination | Wire Gauge | Color | Number of Rows | Connector Type | Number of Positions | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper | Polycarbonate (PC) | 120 A | Spring Retention | -20 ░C | 105 ░C | 50 µin | 1.27 µm | Silver | 600 V | 2 Poles | Crimp | 4 AWG | Gray | 1 | Non-Gendered | 2 | Panel Mount |
