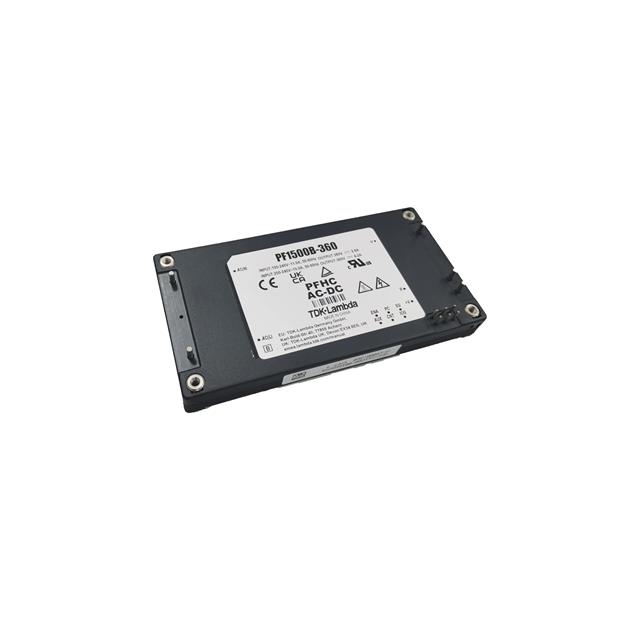

PF1500B Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC CONVERTER 360V 4.2A 1512W
| Part | Load Regulation | Line Regulation | Standard Number | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Type | Voltage - Output 1 | Current - Output (Max) [Max] | Mounting Type | Approval Agency | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Applications | Number of Outputs | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 10 V | 5 V | 62368-1 | 265 VAC | 85 VAC | -40 C | 100 °C | 1.008 kW | Enclosed | 360 V | 2.8 A | Through Hole | CE CSA IEC UKCA UL | Adjustable Output Baseplate Remote On/Off Remote Sense Universal Input | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | 96.5 % | ITE (Commercial) | 1 | Full Brick |
TDK Corporation | 10 V | 5 V | 62368-1 | 265 VAC | 85 VAC | -40 C | 100 °C | 1.008 kW | Enclosed | 360 V | 2.8 A | Through Hole | CE CSA IEC UKCA UL | Adjustable Output Baseplate Remote On/Off Remote Sense Universal Input | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | 96.5 % | ITE (Commercial) | 1 | Full Brick |
