ZWS240 Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 240 W, 24 V, 10 A

Part	Type	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Approval Agency	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Number of Outputs	Applications	Voltage - Isolation	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1 [custom]

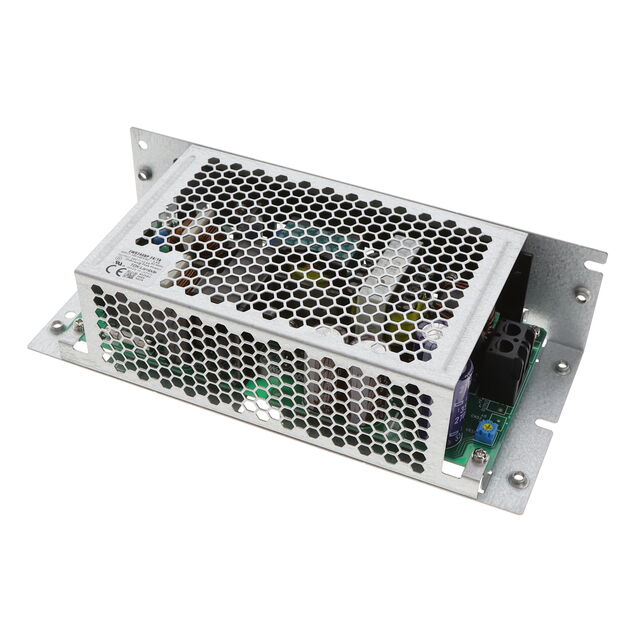

TDK Corporation ZWS240BP-24/TA	Enclosed	24 V	42 mm	84 mm	1.65 "	180 mm	7.09 in	3.31 in	Chassis Mount	CE	88 %	70 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	265 VAC	85 VAC	10 A	1	ITE (Commercial)	3000 V	240 Watts

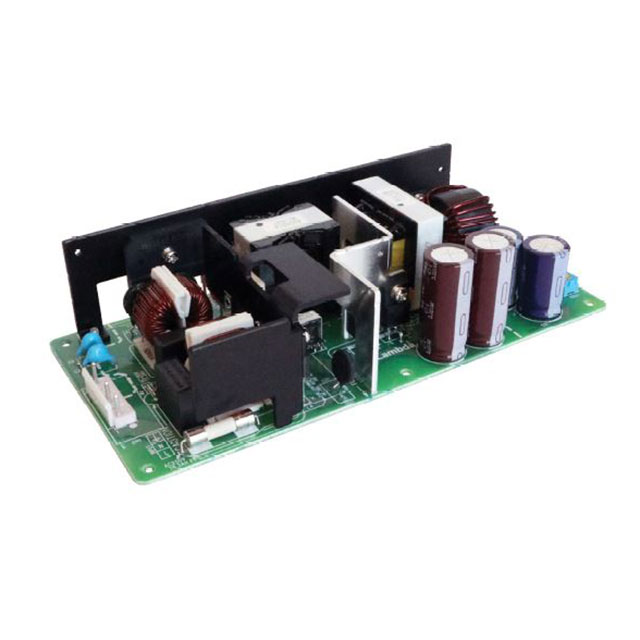

TDK Corporation ZWS240RC-24	Open Frame	24 V	42 mm	84 mm	1.65 "	180 mm	7.09 in	3.31 in	Chassis Mount	CE	90 %	70 °C	-10 °C	Adjustable Output Universal Input	265 VAC	85 VAC	10 A	1	ITE (Commercial)	3000 V	240 Watts
TDK Corporation ZWS240BP-48/T	Open Frame	48 V			1.65 "	222 mm	8.74 in	3.74 "	Chassis Mount	CE	88 %	70 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	265 VAC	85 VAC	5 A	1	ITE (Commercial)	3000 V	240 Watts	42 mm	95 mm
TDK Corporation ZWS240BP-36/A	Enclosed				1.65 "	222 mm	8.74 in	3.74 "	Chassis Mount	CE	88 %	70 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	265 VAC	85 VAC	6.7 A	1	ITE (Commercial)	3000 V	240 Watts	42 mm	95 mm	36 V
TDK Corporation ZWS240BP-48/TL	Open Frame	48 V			1.65 "	222 mm	8.74 in	3.74 "	Chassis Mount	CE	88 %	70 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	265 VAC	85 VAC	5 A	1	ITE (Commercial)	3000 V	240 Watts	42 mm	95 mm
TDK Corporation ZWS240BP-36/T	Open Frame				1.65 "	222 mm	8.74 in	3.74 "	Chassis Mount	CE	88 %	70 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	265 VAC	85 VAC	6.7 A	1	ITE (Commercial)	3000 V	240 Watts	42 mm	95 mm	36 V
TDK Corporation ZWS240BP-36/TA	Enclosed				1.65 "	222 mm	8.74 in	3.74 "	Chassis Mount	CE	88 %	70 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	265 VAC	85 VAC	6.7 A	1	ITE (Commercial)	3000 V	240 Watts	42 mm	95 mm	36 V
TDK Corporation ZWS240BP-36/TL	Open Frame				1.65 "	222 mm	8.74 in	3.74 "	Chassis Mount	CE	88 %	70 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	265 VAC	85 VAC	6.7 A	1	ITE (Commercial)	3000 V	240 Watts	42 mm	95 mm	36 V
TDK Corporation ZWS240BP-48	Open Frame	48 V			1.65 "	222 mm	8.74 in	3.74 "	Chassis Mount	CE	88 %	70 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	265 VAC	85 VAC	5 A	1	ITE (Commercial)	3000 V	240 Watts	42 mm	95 mm
TDK Corporation ZWS240BP-48/L	Open Frame	48 V			1.65 "	222 mm	8.74 in	3.74 "	Chassis Mount	CE	88 %	70 °C	-10 °C	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	265 VAC	85 VAC	5 A	1	ITE (Commercial)	3000 V	240 Watts	42 mm	95 mm
