MAX11666 Series

Catalog

IC ADC 12BIT SAR 10UMAX

Part	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Number of A/D Converters	Data Interface	Sampling Rate (Per Second)	Number of Inputs	Architecture	Number of Bits	Reference Type	Supplier Device Package	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Mounting Type	Ratio - S/H:ADC	Input Type	Configuration	Utilized IC / Part	Supplied Contents
Analog Devices Inc./Maxim Integrated MAX11666AUB/V+T	0.118 in 3 Lead	10-MSOP 10-TFSOP Exposed Pad	125 °C	-40 °C	2.2 V	3.6 V	1	SPI	500k	2	SAR	12 bits	Supply	10-uMAX-EP	3.6 V	2.2 V	Surface Mount	1:1	Single Ended	MUX-S/H-ADC
Analog Devices Inc./Maxim Integrated MAX11666AUB+T	0.118 in 3 Lead	10-MSOP 10-TFSOP Exposed Pad	125 °C	-40 °C	2.2 V	3.6 V	1	SPI	500k	2	SAR	12 bits	Supply	10-uMAX-EP	3.6 V	2.2 V	Surface Mount	1:1	Single Ended	MUX-S/H-ADC
Analog Devices Inc./Maxim Integrated MAX11666AUB+	0.118 in 3 Lead	10-MSOP 10-TFSOP Exposed Pad	125 °C	-40 °C	2.2 V	3.6 V	1	SPI	500k	2	SAR	12 bits	Supply	10-uMAX-EP	3.6 V	2.2 V	Surface Mount	1:1	Single Ended	MUX-S/H-ADC

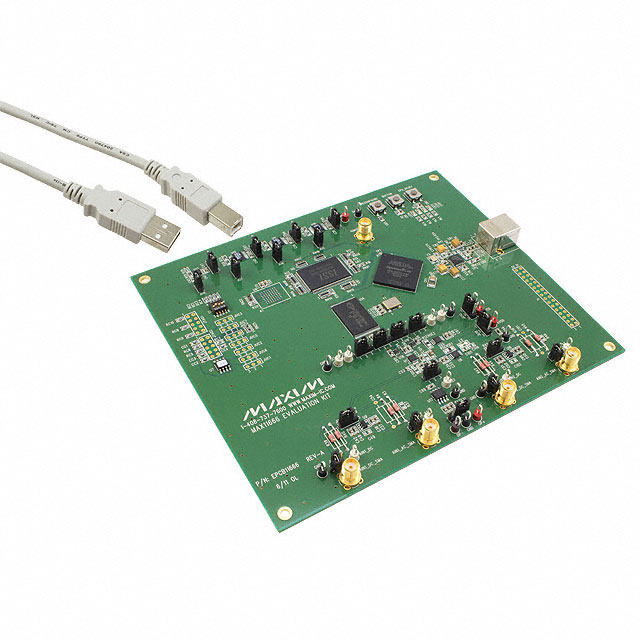

Analog Devices Inc./Maxim Integrated MAX11666EVKIT#							1	SPI	500k			12 bits									MAX11666	Board(s)
Analog Devices Inc./Maxim Integrated MAX11666AUB/V+	0.118 in 3 Lead	10-MSOP 10-TFSOP Exposed Pad	125 °C	-40 °C	2.2 V	3.6 V	1	SPI	500k	2	SAR	12 bits	Supply	10-uMAX-EP	3.6 V	2.2 V	Surface Mount	1:1	Single Ended	MUX-S/H-ADC
