FDAP1 Series
Manufacturer: APEM Inc.
Beta
⌘K

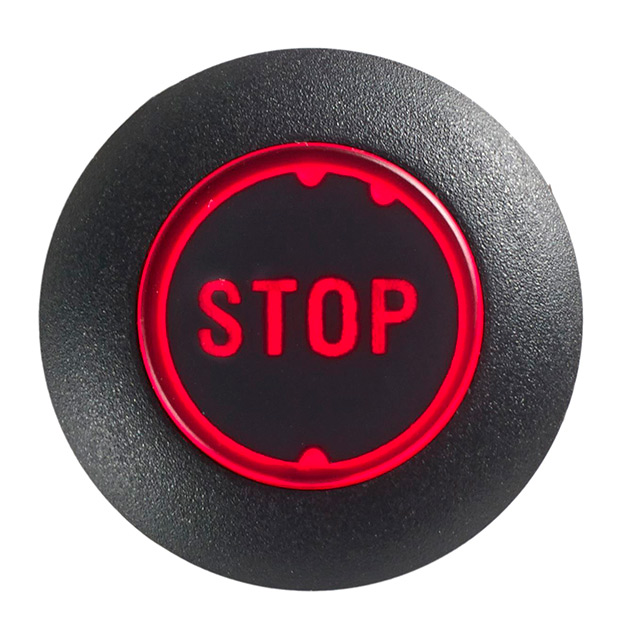

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES
| Part | Mechanical Life | Electrical Life | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Illumination Type, Color | Current Rating (Amps) | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Actuator Marking | Termination Style | Switch Function | Actuator Type | Ingress Protection | Mounting Type | Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 200000 Cycles | 200000 Cycles | SPST | -40 C | 75 ░C | Green/Red LED | 200 mA | Black | 24.2 mm | START/STOP (Alternating) | Solder Lug | Off-On | Button Round | IP69K - Dust Tight High Temp Water Jets Waterproof | Panel Mount Front | Illuminated Standard | 12 V |
