503154 Series

Manufacturer: Molex

Catalog

1.5 W/B DL ST REC ASSY28C

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Style	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Finish - Post	Voltage Rating	Contact Type	Contact Material	Insulation Material	Number of Positions Loaded	Applications	Insulation Height [z]	Insulation Height [z]	Termination	Insulation Color	Insulation Height	Insulation Height	Number of Positions

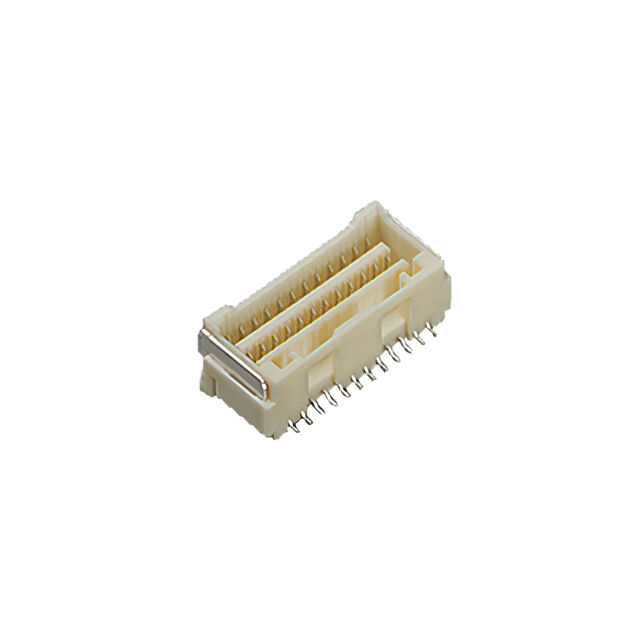

Molex 5031542891	1 µm	39.4 µin	Latch Holder	28	-40 °C	105 ░C	Pick and Place Solder Retention	Receptacle	Board to Cable/Wire	Varies by Wire Gauge	Surface Mount	UL94 V-0	1 çm	39.4 çin	2	Tin	100 VAC	Forked	Copper Alloy	Nylon Polyamide (PA)	All	Automotive General Purpose Industrial Lighting Medical	0.346 in	8.8 mm	Solder	Black

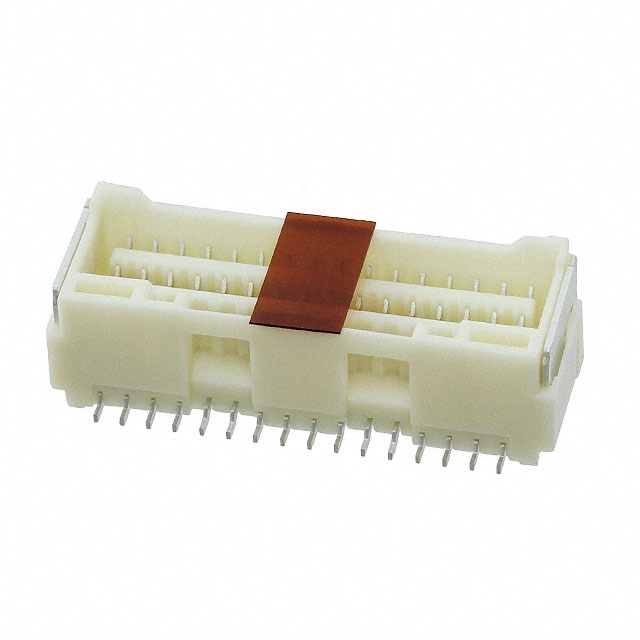

Molex 5031543290	1 µm	39.4 µin	Latch Holder		-40 °C	105 ░C	Pick and Place Solder Retention	Receptacle	Board to Cable/Wire		Surface Mount	UL94 V-0	1 çm	39.4 çin	2	Tin		Forked	Copper Alloy	Resin	All	Automotive General Purpose Industrial Lighting Medical			Solder	Beige	8.75 mm	0.344 in

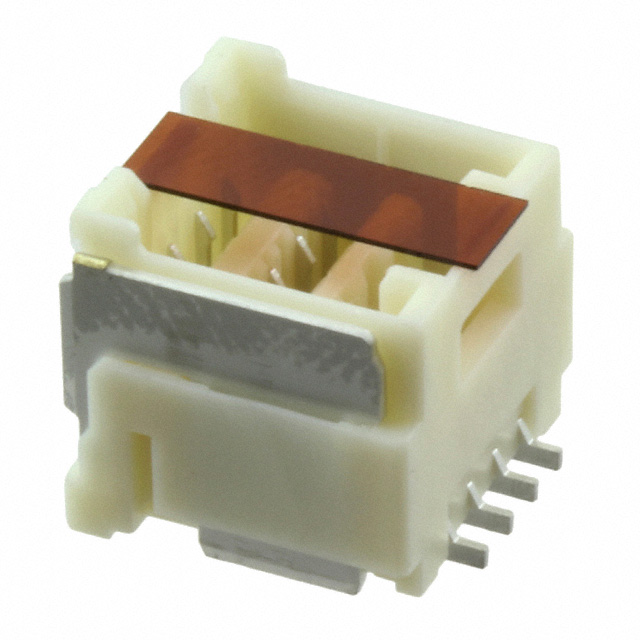

Molex 5031540890	1 µm	39.4 µin	Latch Holder	8	-40 °C	105 ░C	Pick and Place Solder Retention	Receptacle	Board to Cable/Wire		Surface Mount	UL94 V-0	1 çm	39.4 çin	2	Tin		Forked	Copper Alloy	Resin	All	Automotive General Purpose Industrial Lighting Medical			Solder	Beige	8.75 mm	0.344 in

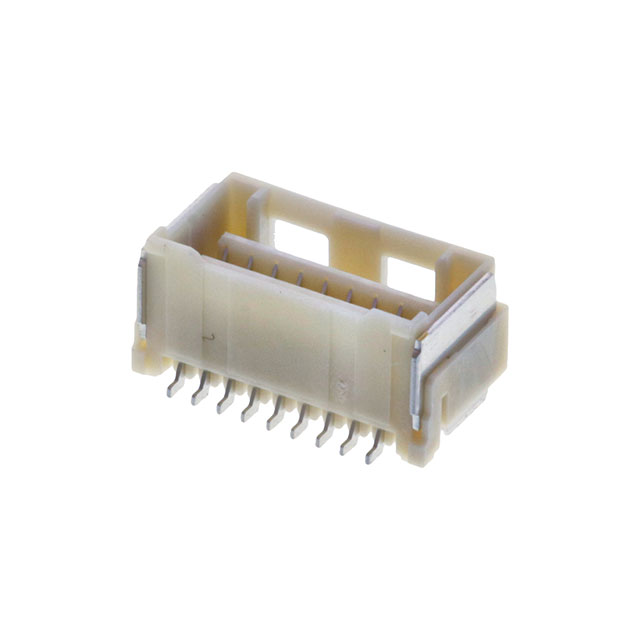

Molex 5031541890	1 µm	39.4 µin	Latch Holder	18	-40 °C	105 ░C	Pick and Place Solder Retention	Receptacle	Board to Cable/Wire		Surface Mount	UL94 V-0	1 çm	39.4 çin	2	Tin		Forked	Copper Alloy	Resin	All	Automotive General Purpose Industrial Lighting Medical			Solder	Beige	8.75 mm	0.344 in

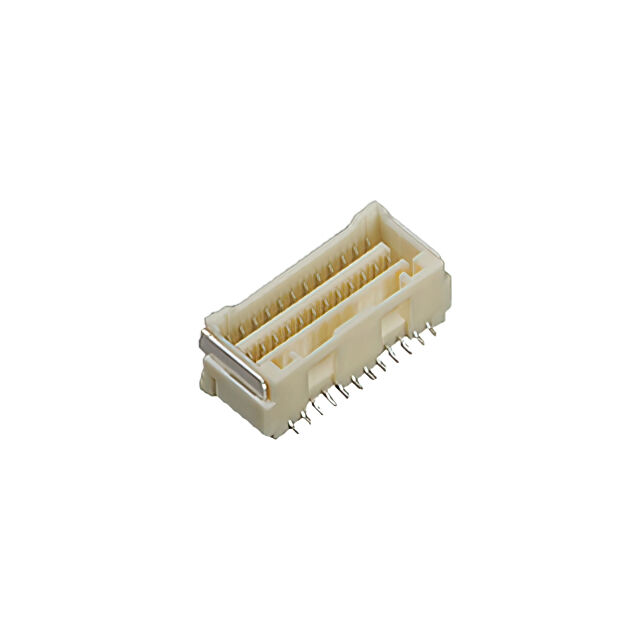

Molex 5031541291	1 µm	39.4 µin	Latch Holder	12	-40 °C	105 ░C	Pick and Place Solder Retention	Receptacle	Board to Cable/Wire	Varies by Wire Gauge	Surface Mount	UL94 V-0	1 çm	39.4 çin	2	Tin	100 VAC	Forked	Copper Alloy	Nylon Polyamide (PA)	All	Automotive General Purpose Industrial Lighting Medical	0.346 in	8.8 mm	Solder	Black

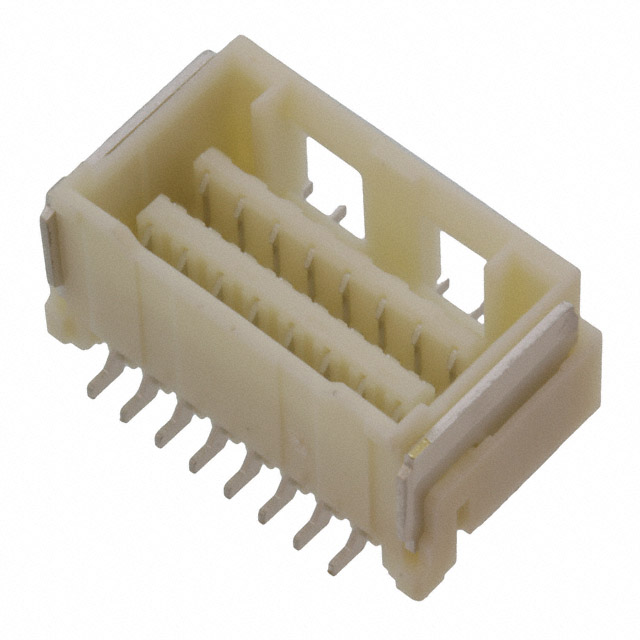

Molex 5031541690	1 µm	39.4 µin	Latch Holder		-40 °C	105 ░C	Pick and Place Solder Retention	Receptacle	Board to Cable/Wire		Surface Mount	UL94 V-0	1 çm	39.4 çin	2	Tin		Forked	Copper Alloy	Resin	All	Automotive General Purpose Industrial Lighting Medical			Solder	Beige	8.75 mm	0.344 in	16

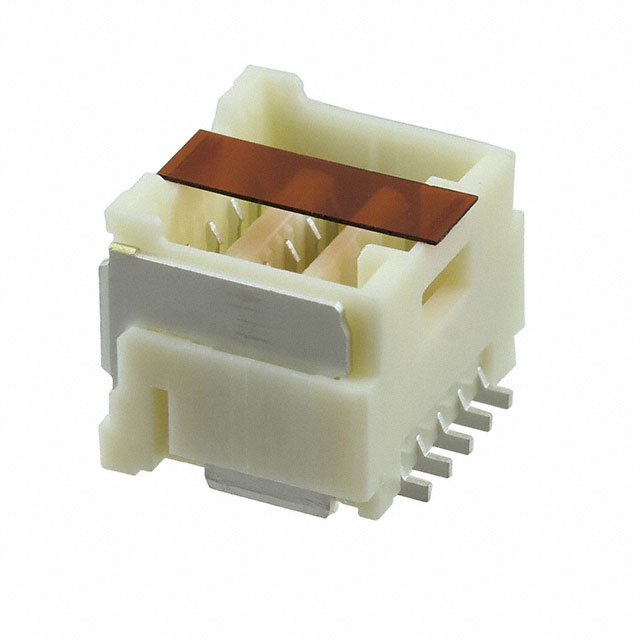

Molex 5031541090	1 µm	39.4 µin	Latch Holder	10	-40 °C	105 ░C	Pick and Place Solder Retention	Receptacle	Board to Cable/Wire		Surface Mount	UL94 V-0	1 çm	39.4 çin	2	Tin		Forked	Copper Alloy	Resin	All	Automotive General Purpose Industrial Lighting Medical			Solder	Beige	8.75 mm	0.344 in

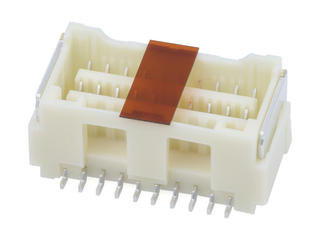

Molex 5031542090	1 µm	39.4 µin	Latch Holder	20	-40 °C	105 ░C	Pick and Place Solder Retention	Receptacle	Board to Cable/Wire		Surface Mount	UL94 V-0	1 çm	39.4 çin	2	Tin		Forked	Copper Alloy	Resin	All	Automotive General Purpose Industrial Lighting Medical			Solder	Beige	8.75 mm	0.344 in
Molex 5031541490	1 µm	39.4 µin	Latch Holder	14	-40 °C	105 ░C	Pick and Place Solder Retention	Receptacle	Board to Cable/Wire		Surface Mount	UL94 V-0	1 çm	39.4 çin	2	Tin		Forked	Copper Alloy	Resin	All	Automotive General Purpose Industrial Lighting Medical			Solder	Beige	8.75 mm	0.344 in
Molex 5031543490	1 µm	39.4 µin	Latch Holder	34	-40 °C	105 ░C	Pick and Place Solder Retention	Receptacle	Board to Cable/Wire		Surface Mount	UL94 V-0	1 çm	39.4 çin	2	Tin		Forked	Copper Alloy	Resin	All	Automotive General Purpose Industrial Lighting Medical			Solder	Beige	8.75 mm	0.344 in
