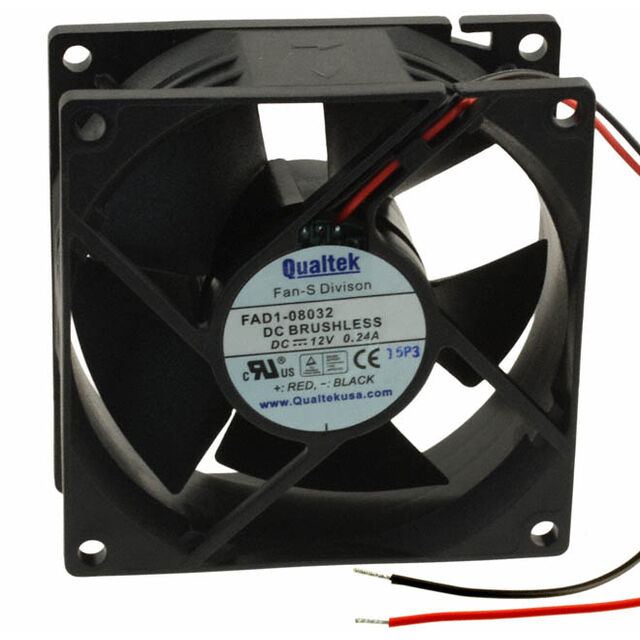

FAD1-08032 Series

Manufacturer: Qualtek

Catalog

FAN AXIAL 80.5X32MM 24VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Material - Frame	Current Rating (Amps)	Approval Agency	Fan Type	Noise	Voltage - Rated	Width [y]	Termination	Power (Watts)	Static Pressure	Static Pressure	Air Flow	Air Flow	Bearing Type	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	RPM
Qualtek FAD1-08032DBHW12	26.4 VDC	21.6 VDC	Plastic	Plastic	120 mA	CE cURus TUV	Tubeaxial	42.4 dB(A)	24 VDC	32 mm	2 Wire Leads	2.88 W	0.292 in H2O	72.7 Pa	50 CFM	1.4 m³/min	Ball	80.5 mm	80.5 mm	0.238 lb	107.95 g	70 °C	-10 °C	3800 RPM
Qualtek FAD1-08032CBJW12	13.2 VDC	10.8 VDC	Plastic	Plastic	0.23 A	CE cURus TUV	Tubeaxial	44 dB(A)	12 VDC	32 mm	2 Wire Leads	2.76 W	0.316 in H2O	78.7 Pa	55.4 CFM	1.55 m³/min	Ball	80.5 mm	80.5 mm	0.238 lb	107.95 g	70 °C	-10 °C	4200 RPM
Qualtek FAD1-08032CBLW12	13.2 VDC	10.8 VDC	Plastic	Plastic	110 mA	CE cURus TUV	Tubeaxial	35.5 dB	12 VDC	32 mm	2 Wire Leads	1.32 W	0.187 in H2O	46.6 Pa	39.6 CFM	1.11 m³/min	Ball	80.5 mm	80.5 mm	0.238 lb	107.95 g	70 °C	-10 °C	3000 RPM
Qualtek FAD1-08032DBMW12	26.4 VDC	21.6 VDC	Plastic	Plastic	100 mA	CE cURus TUV	Tubeaxial	36.7 dB(A)	24 VDC	32 mm	2 Wire Leads	2.4 W	0.241 in H2O	60 Pa	44.8 CFM	1.25 mł/min	Ball	80.5 mm	80.5 mm	0.238 lb	107.95 g	70 °C	-10 °C	3400 RPM

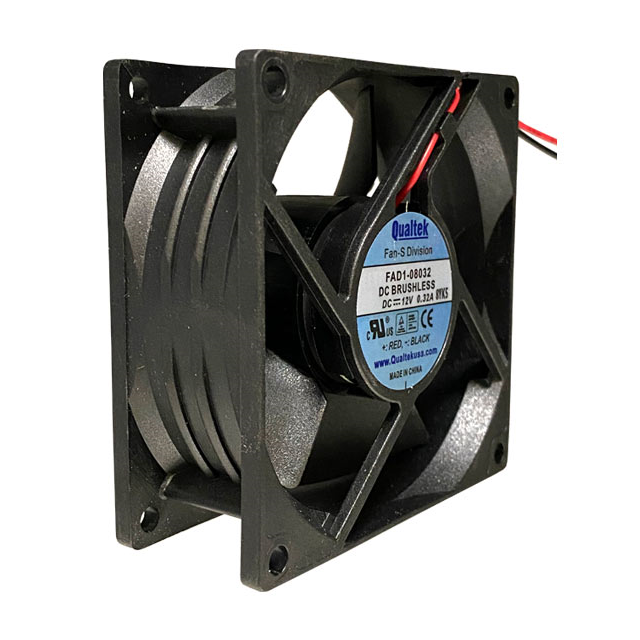

Qualtek FAD1-08032CBMW12	13.2 VDC	10.8 VDC	Plastic	Plastic		CE cURus TUV	Tubeaxial	36.7 dB(A)	12 VDC	32 mm	2 Wire Leads	1.92 W	0.241 in H2O	60 Pa	44.8 CFM	1.25 mł/min	Ball	80.5 mm	80.5 mm	0.238 lb	107.95 g	70 °C	-10 °C	3400 RPM
