9L28050 Series
Manufacturer: Belden Inc.
Beta
⌘K

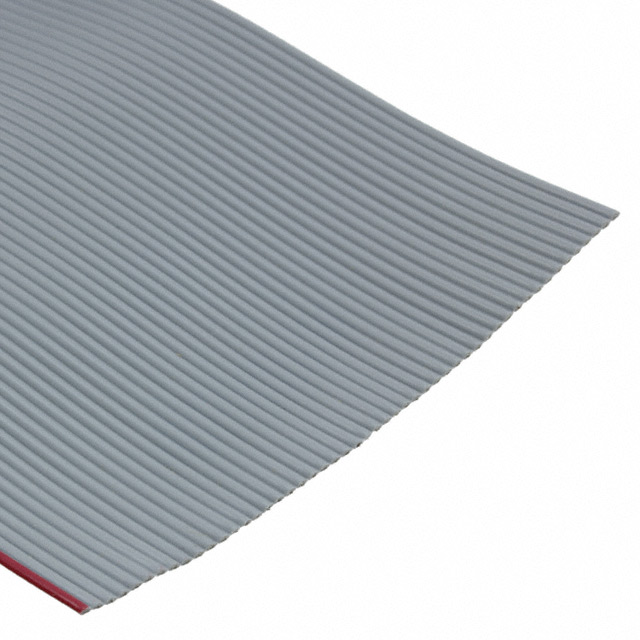

CBL RIBN 50COND 0.05 GRAY 100'
| Part | Insulation Resistance | Conductor Material | Current Rating (Amps) | First Conductor Mark | Jacket (Insulation) Material | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Cable Type | Length | Length | Ratings | Ribbon Thickness | Ribbon Thickness | Ribbon Width [custom] | Ribbon Width [custom] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Shielding | Jacket Color | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 10 GOhm | Copper Tinned | 1 A | Red | Poly-Vinyl Chloride (PVC) | 300 VDC | -40 C | 105 ░C | 0.05 in | 1.27 mm | Flat Cable | 100 ' | 30.48 m | UL Style 2651 | 0.89 mm | 0.035 in | 2.5 in | 63.5 mm | 28 AWG | 36 AWG | 7 Strands | Unshielded | Gray | 50 |
