AL Series
Manufacturer: KYOCERA AVX
Beta
⌘K

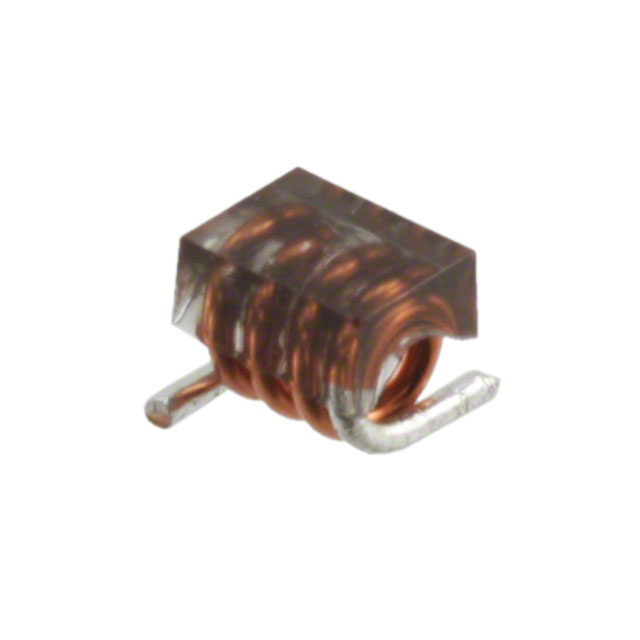

AIR CORE INDUCTORS / TAPE/REEL, 7 INCH PAPER TAPE ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Type | Mounting Type | Tolerance | Material - Core | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Q @ Freq [custom] | Q @ Freq [custom] | Current Rating (Amps) | Inductance | Frequency - Self Resonant | Package / Case | Shielding | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 125 °C | -40 C | 0.12 in | 0.145 in | 3.05 mm | 3.68 mm | 150 MHz | Wirewound | Surface Mount | 5 % | Air | 3.18 mm | 0.125 in | 137 | 150 MHz | 4 A | 12.5 nH | 3.3 GHz | Nonstandard | Unshielded | 3.4 mOhm |
